XML Binding Language 2.0 (XBL)

Draft Proposal, [DATE: 01 Jan 1901]

This version:
http://www.w3.org/TR/2004/WD-sXBL-20040901
Latest version:
http://www.w3.org/TR/sXBL
Previous version:
http://www.w3.org/TR/2004/WD-sXBL-20041122/
http://www.w3.org/TR/2004/WD-sXBL-20040901/
Editors:
Jon Ferraiolo, Adobe Systems, jon.ferraiolo@adobe.com
Ian Hickson, Opera Software, ian@hixie.ch
David Hyatt, Apple, hyatt@apple.com
© copyright 2004 by various people

Abstract

This working draft describes the ability to map elements to script, event handlers, CSS, and more complex content models. This can be used, for instance, to define custom XML vocabularies (tag sets) in terms of SVG elements, or to re-order and wrap content so that, for instance, simple HTML or XHTML markup can have complex CSS styles applied without requiring that the markup be polluted with multiple semantically neutral div elements.

It can also be used to implement new DOM interfaces, and, in conjunction with other specifications, enables arbitrary tag sets to be implemented as widgets. For example, XBL could in theory be used to implement XForms.

Status of this document

This is not yet a W3C Working Draft. It is just a draft proposal.

@@XXX this section to be filled in before official publication

Table of contents


Introduction

This specification defines the XML Binding Language and some supporting DOM interfaces and CSS features. XBL is a mechanism for overriding the standard presentation and interactive behavior of particular elements with a "binding". Bindings can be attached to elements using either cascading stylesheets, the document object model, or by declaring, in XBL, that a particular element in a particular namespace is implemented by a particular binding. The element that the binding is attached to, called the bound element, acquires the new behavior and presentation specified by the binding.

Bindings can contain event handlers that watch for events on the bound element, an implementation of new methods, properties and fields that become accessible from the bound element, shadow content that is inserted underneath the bound element, and associated resources such as scoped stylesheets and precached images, sounds, or videos.

XBL cannot be used to give a document new semantics (except if script invoked by XBL explicitly changes the original DOM). The meaning of a document is not changed by any bindings that are associated with it, only its presentation and interactive behavior.

The following is a simple SVG example where a custom element (<myNS:HelloWorld/>) acquires the alternate presentation behavior defined by the <xbl:definition> element at the top of the file. The <myNS:HelloWorld/> element will be rendered by using the contents of the shadow tree which is attached by the binding. The shadow tree consists of an <svg:text> element which has the string "Hello, world, using sXBL" inside:

<?xml version="1.0"?>
<svg width="10cm" height="3cm" viewBox="0 0 200 60"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmsns:myNS="http://www.example.com">
  <title>Example xbl01.svg - "hello world" sample file</title>
  <desc>A simple "Hello, world" sXBL example where the
         rendering behavior of a custom element 'myNS:HelloWorld'
         consists of an 'svg:text' element which has the string
         "Hello, world, using sXBL" inside.</desc>
  <defs>
    <xbl:xbl>

      <!-- The following 'xbl:definition' element defines the
         presentation and interactive behavior that must be used
         for all 'myNS:HelloWorld' elements in this document. -->
      <xbl:definition element="myNS:HelloWorld>
        <xbl:template>
          <text>Hello, world, using sXBL</text>
        </xbl:template>
      </xbl:definition>

    </xbl:xbl>
  </defs>

  <rect x="1" y="1" width="198" height="58" fill="none" stroke="blue"/>
  <g font-size="14" font-family="Verdana" transform="translate(10,35)">

    <!-- Here is an instance of an 'myNS:HelloWorld' element.
       The above binding definition attaches a shadow tree which
       defines alternative rendering and interactive behavior for this element.
       Instead of the standard SVG behavior where unknown elements are not rendered,
       the binding definition causes an 'svg:text' element to be rendered. -->
    <myNS:HelloWorld/>

  </g>

</svg>

The above example results in equivalent rendering to the following SVG. The highlighted sections below (i.e., the <g> and <text> elements) represent the shadow tree which the binding definition (i.e., the <xbl:definition> element defined above) attaches to the custom element. The SVG user agent renders the shadow tree in place of the custom element.

  <svg width="10cm" height="3cm" viewBox="0 0 200 60"
       xmlns="http://www.w3.org/2000/svg" version="1.2">
    <title>Example xbl01-equivalent.svg -
           equivalent rendering for "hello world" sample file</title>

    <rect x="1" y="1" width="198" height="58" fill="none" stroke="blue"/>
    <g font-size="14" font-family="Verdana" transform="translate(10,35)">

      <!-- The document is rendered as if the 'myNS:HelloWorld' element
           were replaced by an SVG 'g' element with a 'text' element inside. -->
      <g>
        <text>Hello, world, using sXBL</text>
      </g>

    </g>

  </svg>

The result is as if
   the 'g' element simply contained the text directly.

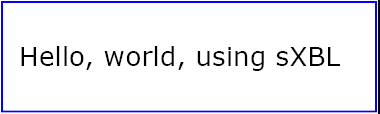

View this image as SVG (SVG/sXBL-enabled browsers only)

Other examples can be found in the Examples section.

History

This specification is the culmination of several years of work by several groups.

Action Sheets A Modular Way of Defining Behavior for XML and HTML (AS)
Vidur Apparao, Brendan Eich, Ramanathan Guha, Nisheeth Ranjan; Netscape Communications Corp. W3C Member Submission, June 1998.
HTML Components - Componentizing Web Applications (HTCs)
Chris Wilson; Microsoft. W3C Member Submission, October 1998.
Behavioral Extensions to CSS (BECSS)
Vidur Apparao, Daniel Glazman, Chris Wilson; CSS Working Group. W3C Working Draft, August 1999.
XBL - XML Binding Language (XBL)
David Hyatt; mozilla.org. W3C Member Submission, January 2001.
Rendering Custom Content (RCC; part of some SVG 1.2 drafts)
Dean Jackson; SVG Working Group. W3C Working Draft, March 2004.

Terminology and Conventions

A binding is the definition of behavior that can be applied to an element so as to augment its presentation.

An XBL subtree is a subtree in an XML document (an XML instance), the subtree having as its root node an xbl element in the XBL namespace, which is used to define bindings. XBL subtrees can stand alone in XBL documents, or can be included in compound documents.

An XBL document is an XML document that has the xbl element at its root.

A compound document is an XML document that contains elements from multiple namespaces, with its root element being from a document language (not XBL), such as XHTML, SVG, or SMIL.

The term binding document is used to mean either an XBL document or a compound document containing XBL subtrees.

A bound element is an element in an arbitrary XML namespace, or in an HTML document, to which a binding has been applied.

A bound document is an XML or HTML document containing one or more bound elements.

The shadow tree for a bound element is the subtree of nodes that are attached to a bound element as a result of XBL processing. (See: shadow content.) The contents of the shadow tree augment the bound element's standard presentation and interactive behavior with alternate behavior. The shadow tree is hidden from normal DOM processing (hence the name "shadow"). The shadow tree is attached to the bound element. Once attached, the shadow tree can be accessed only via XBL-specific DOM extensions and therefore is not accessible via Core DOM navigation facilities such as firstChild or nextSibling. (See: DOM interfaces.)

The term shadow content refers to the various nodes in the shadow tree of a bound element. Shadow content is created by cloning a shadow content template during binding attachment. (See: shadow content.)

In this specification, the term in error, when used of an element or attribute, means that the element or attribute is not conformant according to the rules of this specification. Rules for exactly how an element or attribute must be treated when it is in error are always given when the term is used. Typically this will involve ignoring the erroneous nodes, meaning the UA must, for the purposes of XBL processing, act as if those nodes were absent. UAs must not, however, remove such nodes from the DOM in order to ignore them. The nodes retain all their non-XBL semantics.

UAs should report all errors to users, although they may do this in an unobtrusive way, for example in an error console.

In addition to the error handling rules given in this specification, UAs may abort all processing when encountering an error.

A correct element or attribute is one which is not in error.

The namespace of all the XBL elements and XBL global attributes must be: http://www.w3.org/2004/xbl

XBL elements are frequently referred to by just their local name in this specification. In real documents, they must be associated with the XBL namespace as per the rules given in the Namespaces in XML specification [XMLNS].

For convenience, elements and attributes from specific namespaces are sometimes referred to simply in the form prefix:localname, without explicitly stating which namespace the prefix is bound to. When this occurs, readers should assume the following prefix declarations are in scope:

xmlns:xbl="http://www.w3.org/2004/xbl"
xmlns:xforms="http://www.w3.org/2002/xforms"
xmlns:ev="http://www.w3.org/2001/xml-events"
xmlns:svg="http://www.w3.org/2000/svg"
xmlns:xlink="http://www.w3.org/1999/xlink"
xmlns:html="http://www.w3.org/1999/xhtml"

All element names, attribute names, and attribute values in XBL are case sensitive.

Conformance

The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in [RFC2119]. For readability, these words are not capitalised in this specification.

All sections of this specification including the introduction and the schema snippets are normative unless they explicitly state otherwise. Errata are also normative but override conflicting parts of the specification.

XBL subtrees must satisfy the constraints described in this specification.

XBL user agent implementations must behave as described by this specification, even when faced with non-conformant XBL subtrees.

Loading External Resources

JF has a pending action item to propose text for this section (minutes, member only) to point to 17.1 Externally referenced documents.

Several features in XBL allow external resources to be loaded.

When the specification says that the resource must be loaded unless it has already been loaded, then references to the same resource (even if they are somewhat indirect, for example via HTTP redirects) must result in the same instance being reused, or shared. To determine if two resources are the same, their final base URIs (after all redirects) are compared.

Assume RX is a resource that redirects to resource X using the HTTP 301 redirection mechanism. A document contains an import element that refers to binding document X. A new DOM Document instance is created to represent that instance and the relevant bindings are used. The binding document (X) itself then refers to resource RX. While that resource was being loaded, the redirect to X would be discovered, and therefore instead of creating a new Document, the existing one would be reused.

Such resource sharing is limited to resources loaded by a document, and the resources loaded by already-loaded-shared-resources for that document. Can we phrase that better? The idea is that two IFRAMEs whose documents use the same resource should NOT share that resource. We may also want to be explicit than resources that are currently loading count as resources that are already loaded...

When the specification simply says that the external resource must be loaded, without giving any caveats regarding multiple accesses of the same resource, then each reference must instantiate a new unique copy of the document.

For example, two style elements whose src attributes point to the same stylesheet must create two different Stylesheet instances, such that mutating one does not affect the other.

Several XBL attributes are defined to contain URIs. All URIs may be relative. For relative URIs, the rules given in [XMLBASE] must be used to resolve the value to an absolute URI.

XBL Elements

The start of any XBL subtree is an xbl element, which is described below.

When an XBL element is found inside an element other than that listed as its "Expected context", it is in error. When an XBL element has a child node that does not satisfy the "Expected children" list in its definition (for instance because it is the wrong node type, wrong element type, or because too many elements of its type preceded it), the child is in error. In both cases, being in error means that the UA must, for the purposes of XBL evaluation, treat the XBL subtree as it would if the erroneous node and all its descendants were absent.

However, non-XBL elements retain their semantics, even when considered to be in error for the purposes of XBL.

For cases where unexpected attributes are found on XBL elements, or XBL attributes are found on elements other than those listed as the "Expected context", the error handling is similar: the attributes must be considered to be in error and the UA must ignore them, meaning that the presence of unexpected attributes in no way affects the XBL processing.

Further error handling rules for more specific cases are given where appropriate.

The xbl Element

RelaxNG language definition:
<element name='xbl'>
  <zeroOrMore><ref name='definition'/></zeroOrMore>
  <zeroOrMore><ref name='import'/></zeroOrMore>
  <zeroOrMore><ref name='script'/></zeroOrMore>
  <ref name='id.attrib'/>
</element>
Expected contexts:
In an XBL document, none (this is the root element).
In a compound document, any non-XBL element whose specification allows the xbl element as a child.
Expected children (in any order):
definition: zero or more.
import: zero or more.
script: zero or more.
Any non-XBL element.

The xbl element is the root element of all XBL subtrees.

The following example shows an SVG example with an xbl element which contains two binding definitions. It also shows an example of an svg:defs element.

<svg:svg xmlns:svg="http://www.w3.org/2000/svg" version="1.2">
 <xbl xmlns="http://www.w3.org/2004/xbl">
  <svg:defs>
      <!-- possible definitions of SVG gradients, filters, etc.
           that might be referenced from the binding definitions. -- >
  </svg:defs>
  <definition id="binding1" element="example">
    ...
  </definition>
  <definition id="binding2">
    ...
  </definition>
  <script>
    ...
  </script>
 </xbl>
</svg:svg>

Attributes

id
The id attribute.
script-type
The script-type attribute specifies the MIME type of the scripting language used by all bindings and XBL script blocks in the XBL subtree. If the attribute is not specified, the default language is ECMAScript. [ECMA262]
style-type
The style-type attribute specifies the MIME type of the styling language used by all bindings and XBL style blocks in the XBL subtree. If the attribute is not specified, the default language is CSS (text/css).

XBL user agents should act as if they had the following rules in their UA stylesheet:

@namespace xbl url(http://www.w3.org/2004/xbl);
xbl|xbl:not(:root) { display: none; }

That is to say, they should hide XBL subtrees in compound documents.

UAs must consider any xbl elements that have another xbl element as an ancestor as being in error and must then ignore them, meaning those elements must never be considered to declare any bindings. For example, UAs must never bind elements to bindings defined by definition elements that have two xbl ancestors.

Similarly, XBL elements (other than import and xbl) that do not have a correct xbl element as an ancestor are in error too, and UAs must ignore them, treating them as they would any arbitrary semantic-free XML element. For example, UAs must never bind elements to bindings defined by definition elements that have no xbl ancestors at all.

The definition Element

RelaxNG language definition:
<element name='definition'>
  <choice>
    <attribute name='ref'><data type='anyURI'/></attribute>
    <group>
      <optional><ref name='implementation'/></optional>
      <optional><ref name='template'/></optional>
      <optional><ref name='handlerGroup'/></optional>
      <optional><ref name='resources'/></optional>
      <attribute name='element'><data type='QName'/></attribute>
    </group>
  </choice>
  <ref name='id.attrib'/>
</element>
Expected context:
xbl
Expected children (in any order), if the ref attribute is not specified:
implementation: zero or one.
template: zero or one.
handlerGroup: zero or one.
resources: zero or one.
Any non-XBL element
Expected children (in any order), if the ref attribute is specified:
None.

The definition element describes a single XBL binding that adds presentation and interactive behavior to XML or HTML elements. Each binding has these optional components:

Methods, Properties, and Fields: A binding can specify additional methods that can be invoked on the element. It can also specify additional properties and fields that can be retrieved or set on the element. In this way the functionality of the bound element becomes extensible. (See: binding implementations.)

Template: The optional template defines the initial shadow content for the bound element.

Behavior: A binding can define event listeners for various types of events. Some examples are: UI events (e.g., key and mouse events) on the bound element or on elements within the shadow content; mutation events on the bound element and its descendants; and events having to do with XBL's binding operations (e.g., the prebind and bound events). (See: event handlers.)

Resources: A binding can list stylesheets that are scoped to the bound element, and images, sounds, videos, or other files that a user agent can pre-cache in order to improve performance. (See: binding stylesheets, prefetching resources.)

Alternatively, a binding may reference an existing binding, with the ref attribute. In this case, the ref attribute must reference a definition element which in turn supplies the binding definition.

Bindings may also act as an attachment mechanism, specifying a namespace and local name of elements to associate with the given binding when the binding is imported, using the element attribute.

In addition to the above, the definition element may contain any element outside the XBL namespace, for example svg:defs. These are handled as they would be in any other context, and are ignored by the XBL processing model.

Attributes

id
The id attribute.
ref

This attribute specifies a URI to use to find the binding instead of looking inside the definition element itself. (See: interpretation of URIs to XBL bindings.)

When a definition element has a ref attribute, the UA must fetch the specified resource (unless it has already been loaded).

If the URI references a definition element, and that element does not have a ref attribute, then for the purposes of the rest of the XBL processing model, the element with the ref attribute is treated as if it had the children nodes and the extends attribute of the element to which it refers.

If the URI does not reference a definition element, it is in error and must be ignored..

The referenced definition element cannot have a ref attribute (i.e., only one level of indirection is allowed); otherwise, the original definition element is in error and must also be ignored..

extends
The extends attribute is used to specify the URI of a binding that this binding inherits from. (See: interpretation of URIs to XBL bindings.) If the URI is in error or does not refer to another binding, the UA must ignore it, meaning that this binding does not explicitly inherit from another binding. If the element has a ref attribute, then the extends attribute is in error and must be ignored.
element
This attribute specifies the qualified name (QName) of an element to attach to the binding when the binding is imported.

If an element attribute does not resolve to a valid qualified name (QName) using the attribute QName resolving semantics and the namespace prefix declarations in scope on the element, it is in error and must be ignored, meaning that while the binding is still parsed and may be referenced using other attachment mechanisms, the binding is not attached to any element by its element attribute, as if the attribute had simply been omitted. [XMLNS]

If a definition element contains both a ref attribute and has child nodes other than comment nodes or whitespace text nodes, then it is in error, and the contents of the element must all be ignored for the purposes of XBL processing.

The task force believes that a sentence equivalent to the following note needs to be somewhere in the spec, so that people don't think XBL can be used as a justification for sending markup over the wire without verifying that the sender and consumer both agree on the meaning of the markup. It was generally agreed that the word "semantics" might be better avoided while expressing this concept, however, and so this text is not yet final.

The definition element defines a presentation and behavior binding. It does not define an element's semantics. If an element has no semantics when processed alone, then it has no semantics when processed with XBL.

The implementation Element

Expected context:
definition
Expected children:
Depends on the scripting language.

The implementation element describes a set of methods, properties, and fields that are attached to the bound element. Once the binding is attached, these methods, properties, and fields can be invoked directly from the bound element.

The implementation element, if present, must either contain code in the language specified by the XBL subtree's script-type attribute, or have a src attribute that points to a resource containing code in the language specified by the script-type attribute. The syntax and semantics of this code depend on the specific language. This specification defines the semantics for ECMAScript implementations. (See: binding implementations.)

Attributes

id
The id attribute.
name
The name attribute can be used to provide a specific name for an implementation. This name can then be used to reference the implementation. For example, in ECMAScript the value of this attribute represents the name of the corresponding class that is constructed for the implementation. If no name attribute is specified, or if it is specified but empty, then the binding's document URI and ID (if any) are used to uniquely reference the binding's implementation.
implements
The implements attribute can be used to describe a set of interfaces that are implemented by the binding. Its value is a space-separated list of named interfaces. If supported, in strongly typed languages the bound element can be referenced not only as any of the interfaces that the element might already support (e.g., HTMLElement) but also as any of the interfaces described by this attribute. Support of this capability is optional.

Generally, if the interfaces listed in this attribute are not well defined DOM interfaces, the expectation is that the application will have access to resources, such as external IDL files, defining them. How this is handled is outside the scope of this specification.

src
The src attribute specifies the URI to a resource of the type given by the XBL subtree's script-type attribute. If specified, it overrides the contents of the element (even if the resource could not be fetched or was of the wrong type). (See: binding implementations.)

If an implementation element is marked (via the script-type attribute of the xbl element) as being in a language that the UA does not support, or, if the implementation element points (using the src attribute) to a resource that is either unavailable, or not of the type specified by the script-type attribute of the xbl element, then it is in error and the UA must ignore it, meaning it must not be used as an implementation definition for any binding.

How UAs must handle nodes inside implementation elements depends on the language used. (See: loading and running scripts, binding implementations.)

implementation blocks must be evaluated when their binding is attached. Once a binding is attached, changes to the implementation element have no effect on that binding. If an implementation element is changed, however, it shall affect bindings that are attached after the change.

The template Element

RelaxNG language definition:
<element name='template'>
  <ref name='id.attrib'/>
</element>
Expected context:
definition
Expected children:
Anything. Of particular interest, the content and inherited elements may occur as descendants, and non-XBL descendant elements may host xbl:inherits and xbl:pseudo attributes.

The template element contains child nodes that can be in any namespace. The subtree specified by the template element is referred to as the shadow content template. When a binding is attached, the template element's child nodes are cloned and attached to the bound document under the bound element (where they are accessible via the xblShadowTree DOM property). Because these cloned nodes are hidden from their parent and exist outside the normal document tree, they are referred to as shadow content.

When the template element is cloned, it is renamed to shadowTree. (See: rules for shadow content generation.)

Attributes

id
The id attribute.
applyGlobalSheets
The applyGlobalSheets attribute indicates whether or not rules in stylesheets associated with the binding document apply to the shadow content generated by the binding. Its value must be either true (indicating that they do) or false (indicating that they do not). The default behavior, which is used when the attribute is omitted or has a value other than the two allowed values, is to apply the binding document stylesheets (same as true). (See: binding stylesheets.)
applyAuthorSheets
The applyAuthorSheets attribute indicates whether or not rules in author stylesheets associated with the bound element's document apply to the shadow content generated by the binding. Its value must be either true (indicating that they do) or false (indicating that they do not). The default behavior, which is used when the attribute is omitted or has a value other than the two allowed values, is to not apply the bound document's author style sheets (same as false). (See: binding stylesheets.)
allowSelectorsThrough
The allowSelectorsThrough attribute indicates whether or not rules in in stylesheets from outer scopes can match through elements in the shadow content generated by the binding. Its value must be either true (indicating that they can) or false (indicating that they cannot). The default behavior, which is used when the attribute is omitted or has a value other than the two allowed values, is to not let rules from outer scope match through the shadow content (same as false). (See: binding stylesheets

The semantics of non-XBL elements inside this element are untouched, which can lead to unintuitive results. (See: semantics of non-XBL elements in XBL contexts.)

The content Element

RelaxNG language definition:
<element name='content'>
  <optional><attribute name='includes'><text/></attribute></optional>
  <ref name='id.attrib'/>
</element>
Expected context:
Any, but there must be a correct template element somewhere in the ancestor chain, and there must not be any correct content elements anywhere in the ancestor chain.
Expected children:
Anything.

The content element is used inside shadow content to specify insertion points for explicit content that might already exist underneath the bound element. As far as the presentation model is concerned, any shadow content the binding places between the bound element and the content elements is interleaved between the bound element and its explicit children without affecting the document model. (See: processing content elements.)

If the includes attribute successfully matches against children of the bound element, then those children are inserted into the final flattened tree in place of the content element. If the includes attribute does not match against any children, then the child elements of the content element are inserted into the final flattened tree in place of the content element instead.

Attributes

id
The id attribute.
includes
The includes attribute can be used to indicate that only certain content should be placed at the content element. Its value is a CSS selector. (See: processing content elements.)
applyBindingSheets
The applyBindingSheets attribute indicates whether or not scoped stylesheets loaded for an XBL binding are applied to a bound element's explicit children (in addition to the bound element itself) that are inserted below this content element when it is processed. Its value must be either true (indicating that they are) or false (indicating that they are not). The default behavior, which is used when the attribute is omitted or has a value other than the two allowed values, is that they are not applied (same as false). (See: binding stylesheets.)
locked
The locked attribute indicates whether or not new children may be inserted below this content element when it is processed. Its value must be either true (indicating that they may not) or false (indicating that they may). The default behavior, which is used when the attribute is omitted or has a value other than the two allowed values, is that they may be inserted (same as false). Elements already assigned to a content element whose locked attribute is dynamically changed are not removed from that element. (See: processing content elements.)

The inherited Element

RelaxNG language definition:
<element name='inherited'>
  <ref name='id.attrib'/>
</element>
Expected context:
Any, but there must be a correct template element somewhere in the ancestor chain.
Expected children:
Anything.

The inherited element is replaced by the shadow content of the base binding. If the base binding has no shadow content, or if this is not the first inherited element, then the contents of the inherited element (if any) are used instead. (See: processing inherited elements.)

Attributes

id
The id attribute.

While it is legal to nest inherited elements, it is pointless, since if one inherited element used its fallback content, any subsequent such elements will too.

The xbl:inherits Attribute

Expected element:
Any, but there must be a correct template element somewhere in the ancestor chain.

The xbl:inherits attribute is a global attribute in the XBL namespace that specifies which attributes on the bound element should be forwarded to the element on which the attribute is found when the shadow content template is cloned. It is a space separated list of QNames or QName pairs separated by equal signs. (See: attribute forwarding.)

The xbl:pseudo Attribute

Expected element:
Any, but there must be a correct template element somewhere in the ancestor chain.

The xbl:pseudo attribute is a global attribute in the XBL namespace that specifies the pseudo-element that, when used on the bound element, must be mapped to the element on which the attribute is found. (See: matching pseudo-elements.)

The handlerGroup Element

RelaxNG language definition:
<element name='handlerGroup'>
  <zeroOrMore><ref name='handler'/></zeroOrMore>
  <ref name='id.attrib'/>
</element>
Expected context:
definition
Expected children:
handler: zero or more.

The handlerGroup element's event handlers can be called for events that flow through the bound element. During capture, target and bubbling phases, when a given event is received by a bound element, if a corresponding event listener has been attached to the handlerGroup element, then the event will be forwarded to that event listener. (See: event forwarding, binding attachment and detachment.)

Attributes

id
The id attribute.

The handler Element

Expected context:
handlerGroup
Expected children:
Depends on the scripting language.

The handler element describes a single event handler. This handler is attached to its parent handlerGroup element, which is used as an event forwarding target when handling events on the bound element. (See: event handlers.) It wraps a script that is executed when the event handler is matched.

Attributes

id
The id attribute.
event
The event attribute describes the specific event that this handler is listening for. (See: criteria for event handlers.)
handler
The handler attribute specifies the URI reference of a resource that defines the action that should be performed if the event handler is fired. (See: event handlers.)
propagate
The propagate attribute specifies whether after processing all listeners at the current node, the event is allowed to continue on its path (either in the capture or the bubble phase). (See: event handlers.)
defaultAction
The defaultAction attribute specifies whether after processing of all listeners for the event, the default action for the event (if any) should be performed or not. (See: event handlers.)
phase
This attribute specifies the phase of the event flow that this handler should monitor. The possible values are capture and default. If capture is specified, then the event handler must only be fired during the capturing phase of event propagation. Otherwise, the handler must only be fired during the target and bubbling phases. (See: criteria for event handlers.)
target
The target attribute specifies an ID that the event target must have for the event to fire. (See: criteria for event handlers.)
button
The button attribute imposes a filter on the handler. It is used with mouse handlers to specify a particular button. (See: mouse event handler filters.)
clickcount
The clickcount attribute imposes a filter on the handler. It is used with mouse handlers to specify how many clicks must have occured. (See: mouse event handler filters.)
modifiers
The modifiers attribute imposes a filter on key and mouse handlers. It is used with mouse and key handlers to specify particular modifier keys. (See: mouse event handler filters, key event handler filters.)
key
The key attribute imposes a filter on key handlers. It is used with key handlers to specify which keys to listen for. (See: key event handler filters.)
keylocation
The keylocation attribute imposes a filter on key handlers. It is used with key handlers to specify which keys to listen for. (See: key event handler filters.)
text
The text attribute imposes a filter on text input handlers. It is used with text input handlers to specify which characters to listen for. (See: text input event handler filters.)
prevvalue
The prevvalue attribute imposes a filter on mutation handlers. It is used with mutation handlers to specify what prevValue to listen for. (See: mutation event handler filters.)
newvalue
The newvalue attribute imposes a filter on mutation handlers. It is used with mutation handlers to specify what newValue to listen for. (See: mutation event handler filters)
attrname
The attrname attribute imposes a filter on mutation handlers. It is used with attribute mutation handlers to specify what attribute to listen for changes for. (See: mutation event handler filters)
attrchange
The attrchange attribute imposes a filter on mutation handlers. It is used with attribute mutation handlers to specify what type of change to listen for changes for. (See: mutation event handler filters.)

If a handler element is marked (via the script-type attribute of the xbl element) as being in a language that the UA does not support, or, if the handler element points (using the handler attribute) to a resource that is either unavailable, or not of the type specified by the script-type attribute of the xbl element, then the UA must ignore it, meaning it must not be used for the event handler definitions of any binding.

How UAs must handle nodes inside handler elements depends on the language used. (See: loading and running scripts, event handlers.)

handler blocks must be evaluated each time they are fired. Changes to the handler elements therefore take effect the next time the an event is fired.

The resources Element

RelaxNG language definition:
<element name='resources'>
  <zeroOrMore><ref name='style'/></zeroOrMore>
  <zeroOrMore><ref name='prefetch'/></zeroOrMore>
  <ref name='id.attrib'/>
</element>
Expected context:
definition
Expected children (in any order):
style
prefetch

The resources element contains a list of stylesheets to apply when using this binding, as well as a list of files (images, videos, sound files, etc) to optionally preload.

Attributes

id
The id attribute.

The style Element

Expected context:
resources
Expected children:
Depends on the styling language.

The style element is used to specify a stylesheet that is to be applied to the bound element and to the shadow content generated by the binding, and to explicit children of insert nodes whose applyBindingSheets attribute is set, in documents that use the binding.

Attributes

id
The id attribute.
media
The media attribute specifies the intended destination medium for style information. How the value of this attribute is interpreted is defined by Media Queries [MQ]. If this attribute is not specified, then there is no restriction on which media the stylesheet should be applied to (same as specifying media="all").
src
The src attribute specifies the URI to a resource of the type given by the XBL subtree's style-type attribute. If specified, it overrides the contents of the element (even if the resource could not be fetched or was of the wrong type). (See: binding stylesheets.)

If a style element is marked (via the style-type attribute of the xbl element) as being in a language that the UA does not support, or, if the style element points (using the src attribute) to a resource that is either unavailable, or not of the type specified by the style-type attribute of the xbl element, then it is in error and the UA must ignore it, meaning it must not be used to style anything.

How UAs must handle nodes inside style elements depends on the language used. (See: binding stylesheets.)

The prefetch Element

Expected context:
resources
Expected children:
None.

The prefetch element can be used to list resources that may be pre-loaded for performance reasons. Support for this element is optional. UAs may ignore it.

Attributes

id
The id attribute.
src
A URI to a resource (such as an image) that the binding might use later.

The script Element

Expected context:
xbl
Expected children:
Depends on the scripting language.

The script element contains code that is executed when the XBL subtree is loaded. It can therefore be used to define helper functions used by the bindings.

The script element, when present, must either contain code in the language specified by the XBL subtree's script-type attribute, or have a src attribute that points to a resource containing code in the language specified by the script-type attribute. The syntax and semantics of this code depend on the specific language. (See: loading and running scripts.)

Attributes

id
The id attribute.
src
The src attribute specifies the URI to a resource of the type given by the XBL subtree's script-type attribute. If specified, it overrides the contents of the element (even if the resource could not be fetched or was of the wrong type). (See: script blocks.)

If an script element is marked (via the script-type attribute of the xbl element) as being in a language that the UA does not support, or, if the script element points (using the src attribute) to a resource that is either unavailable, or not of the type specified by the script-type attribute of the xbl element, then it is in error and the UA must ignore it, meaning it must not be executed.

How UAs must handle nodes inside script elements depends on the language used. (See: loading and running scripts.)

script blocks must be evaluated when their end-tag is parsed, or, for dynamically created elements, when they are inserted into a document. Once evaluated, a script block is dead and changes to its contents have no effect.

The import Element

RelaxNG language definition:
<element name='import'>
  <optional><attribute name='bindings'><data type='anyURI'/></attribute></optional>
  <ref name='id.attrib'/>
</element>
Expected contexts:
Any, but the ancestors must all be correct.
Expected children:
None.

The import element specifies a group of bindings to use. Unless explicitly imported using an import element, binding definitions that declare attachments using the element attribute are only used in the document that defines them.

The import element may occur anywhere, within and without XBL subtrees, but must be considered in error and ignored (i.e. must not cause anything to be imported) if any of its ancestors are in error.

Attributes

id
The id attribute.
bindings

The bindings attribute specifies the URI of the bindings to import. If it has a fragment identifier it specifies the subpart of the specified resource to examine for binding attachment declarations. This attribute is required. If it is omitted, the element is in error and must be ignored.

The URI must point to a binding document. If the URI designated by an import element has a fragment identifier, it must point to an element in the specified document. If it does not, the element is in error and must be ignored.

If the URI designated by an import element cannot be resolved, or returns an HTTP 404 error (or equivalent), or does not point to a resource with an XML MIME type, or has any other problem that makes it unusable, then the element is in error and must be ignored.

When an import element is parsed or inserted into a document, and whenever the bindings attribute is subseqently changed, the URI specified by its bindings attribute must be loaded (unless it has already been loaded).

If the URI designated by an import element cannot be resolved, or returns an HTTP 404 error, or does not point to a resource with an XML MIME type, or has any other problem that makes it unusable, then the element is in error and must not cause anything to be imported.

While the import element remains in the document, all the correct bindings that it imports and that specify an attachment must be attached to any matching elements that have the same ownerDocument as the import element. (See: binding attachment.)

If there is a fragment identifier, it imports all the definition elements in the subtree designated by that fragment identifier. Otherwise, it imports all the definition elements in the binding document.

An import is live, if new definition elements are added to a subtree that is being imported by a document, then the new bindings are immediately applied to that document. Similarly, if an import element is removed, if it stops matching the conditions described above (such as having a bindings attribute), or if the bindings attribute is changed, then the bindings it was importing are detached from any elements they were affecting.

XBL bindings are always implicitly imported into the document in which they are defined.

An XBL subtree that defines some bindings is automatically imported in that document, so such mappings are always used. The following example demonstrates this.

example.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="foo">
   ...
  <definition>
  <definition element="bar">
   ...
  <definition>
 </xbl ...>
 <foo xmlns=""/> <!-- this will have a binding applied -->
 <bar xmlns=""/> <!-- this will have a binding applied -->
</svg>

If the binding definitions are in a separate file, then that file needs to be imported explicitly:

widgets.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="foo">
   ...
  <definition>
  <definition element="bar">
   ...
  <definition>
 </xbl ...>
</svg>
example.svg

<svg:svg ...
         xmlns:svg="http://www.w3.org/2000/svg"
         xmlns:xbl="http://www.w3.org/2004/xbl">
 <xbl:import bindings="widgets.svg"/>
 <foo/> <!-- bound -->
 <bar/> <!-- bound -->
</svg:svg>

If a file imports a specific binding but the file containing that binding has its own import elements, the second import only affects nodes in that document. For example:

foo.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="foo" id="foo">
   <content>
    <bar xmlns=""/> <!-- not bound, not even when in shadow content -->
   </content>
  <definition>
 </xbl>
</svg>
bar.svg

<svg xmlns="http://www.w3.org/2000/svg" ...>
 <xbl id="bindings" xmlns="http://www.w3.org/2004/xbl" ...>
  <definition element="bar" id="bar">
   <content>
    <foo xmlns=""/> <!-- bound: this document imports foo.svg -->
    <bar xmlns=""/> <!-- bound: bar binding is defined locally -->
   </content>
  <definition>
 </xbl>
 <import bindings="foo.svg" xmlns="http://www.w3.org/2004/xbl"/>
</svg>
example.svg

<svg:svg ...
         xmlns:svg="http://www.w3.org/2000/svg"
         xmlns:xbl="http://www.w3.org/2004/xbl">
 <xbl:import bindings="bar.svg#bindings"/>
 <foo/> <!-- not bound: foo.svg not imported here -->
 <bar/> <!-- bound -->
</svg:svg>

The id attribute of XBL elements

RelaxNG language definition:
<define name='id.attrib'>
  <optional>
    <attribute name='id'>
      <data type='ID'/>
    </attribute>
  </optional>
</define>
Expected element:
Any element in the XBL namespace.

The id attribute assigns a name to an element. This name must be unique in the binding document. The id attribute is of type ID. Refer to the "Extensible Markup Language (XML)" Recommendation [XML].

An id attribute's value must be valid, as defined by XML. UAs must consider ID attributes that have invalid values as being in error, not associating their element with the given ID. (See XML 1.0, section 3.3.1.)

What does it mean to require that the ID attribute must be valid? Does it mean "must match XML's Name production"? What if it isn't? Does it put it in error? If it is in error, what happens; is that covered by our new "in error" handling text?

Loading and Running Scripts

Scripts in XBL may be found in script, implementation, and handler elements, or in resources that those elements point to.

In the case of script and implementation elements, if a src attribute is present, or, in the case of a handler element, if a handler attribute is present, then the attribute overrides the contents of the element (even if fetching the specified URI failed).

In any case, wherever the script is found, the rules for parsing it are the same, but depend on the language specified by the author.

For non-XML languages, if the content is inline, UAs must concatenate all the textual contents of text and CDATA child nodes, and must ignore any other, non-text nodes (such as elements and comments) along with all their children. All child elements must be processed, though, according to their semantics, before the XBL script block itself is executed. A script element labelled as containing script in a non-XML language yet containing element nodes is in error.

For example, in an XHTML-aware and ECMAScript-capable user agent, the following ridiculous code would cause the alerts to appear in the order One, Two, Three, and would set the test property in the binding document's global script scope to the string "undefinedABC":

<xbl xmlns="http://www.w3.org/2004/xbl">
 <script>
  alert('Two');
  test += "B";
  <script xmlns="http://www.w3.org/1999/xhtml">
   alert('One');
   test += "A";
  </script>
  alert('Three');
  test += "C";
 </script>
</xbl>

Authors must not ever consider doing this.

For XML-based scripting languages, handling of unknown elements and unexpected nodes must be defined by that language.

If the content was in another file, and that file's Content-Type (or equivalent for non-HTTP protocols), if any, was of the type specified on the xbl element, then the contents of that file are used directly, as specified by the relevant language specification.

The src and handler attributes are examined after any children have been processed.

XForms Actions

It is theoretically possible to use XForms Actions as the scripting language in XBL [XForms]. The MIME type that indicates this scripting language is tentatively defined to be application/x-xforms-actions+xml. XBL elements have the following semantics when used with XForms Actions:

script elements
These are exactly equivalent to xforms:action elements that trigger immediately upon being added to the document.
handler elements
These are exactly equivalent to xforms:action elements that trigger when the appropriate event on the bound element is detected.
implementation elements
Since XForms Actions cannot declare new interfaces, implementation elements when the script language is set to application/x-xforms-actions are in error and the UA must ignore them, by treating implementation elements like xforms:action elements that are not bound to any event.

Loading Stylesheets

Stylesheets in XBL may only be found in style elements. If a src attribute is present, it overrides the contents of the element (even if fetching the specified URI failed).

Wherever the style is found, the rules for parsing it are the same, but depend on the language specified by the author.

For non-XML styling languages, if the content is inline, UAs must concatenate all the textual contents of text and CDATA child nodes, and the UA must ignore any other, non-text nodes (such as elements and comments) along with all their children. All child elements must be processed, though, according to their semantics, before the XBL style block itself is parsed. A style element labelled as containing a stylesheet in a non-XML language yet containing element nodes is in error.

For example, in an XHTML-aware and ECMAScript-capable user agent, the rather dubious code below would result in a binding that enclosed the bound element's children in a green box, not a red one:

<xbl xmlns="http://www.w3.org/2004/xbl">
 <definition>
  <template>
   <div xmlns="http://www.w3.org/1999/xhtml">
    <content/>
   </div>
  </template>
  <resources>
   <style id="test">
    div { background: red; }
    <script xmlns="http://www.w3.org/1999/xhtml">
     document.getElementById('test').firstChild.data = "div { background: green; }";
    </script>
    <p xmlns="http://www.w3.org/1999/xhtml">
     div { border: red solid; }
     This will either be ignored by the XBL processor, or will cause
     it to abort all processing altogether, as this text node is not a
     child of the style element.
    </p>
   </style>
  </resources>
 </definition>
</xbl>

For XML-based styling languages, handling of unknown elements and unexpected nodes must be defined by that language.

If the content was in another file, and that file's Content-Type (or equivalent for non-HTTP protocols), if any, was of the type specified on the xbl element, then the contents of that file are used directly, as specified by the relevant language specification. The src attribute is examined after any children have been processed.

Binding Attachment and Detachment

Bindings can be attached and detached dynamically, using several mechanisms.

Bindings shall be attached as soon as the following conditions have been met: (a) it is known that the element is bound to the given binding (b) the element has been created and (c) the binding has loaded.

Interpretation of URIs to XBL bindings

XBL attachment mechanisms use a URI to specify which binding to attach to the designated element. For example:

<definition element="my:foo"
            ref="http://www.example.org/bindings.xml#fooBinding"/>

This section defines how URIs in the definition element's ref attribute, in the argument to the addBinding() method, and in the value of the 'binding' property, are to be interpreted.

The URI specifies a particular binding document (an XBL document or compound document containing one or more XBL subtrees).

If the URI contains a fragment identifier, it must point to a specific definition element (by id) within an XBL subtree in the specified document, and that element must be a direct child of an xbl element that does not itself have an xbl element as an ancestor.

If there is no fragment identifier and the URI points to an XBL document (not a compound document) then the first definition element in the binding document that is a child of the root xbl element is selected. Otherwise, the URI does not point to a correct binding and is in error.

Attachment using definition

The simplest binding mechanism is the definition element. It declares which bindings should be attached to which elements.

While an element matches the element attribute of one of the definition elements that is imported into, or defined in, the element's document, the binding defined by the first such definition element must be bound to the element.

A ref attribute may be used to defer the definition of the binding to another definition element. (See: the definition element.)

Attachment using CSS

Bindings can be attached to elements through CSS using the 'binding' property.

In the following example, a binding is referenced that will be attached to all XHTML checkbox elements.

input[type="checkbox"] {
  binding: url("http://www.example.org/xbl/htmlBindings.xml#checkbox");
}

Bindings attached through CSS must only remain on the bound element as long as the element continues to match the style rule. If at any time a resolution of style on the element determines that a different binding should be attached, the old binding (and all bindings that it explicitly extends in its inheritance chain) must be detached.

Whenever an element is removed from a document, any bindings attached to that element via CSS must be detached.

The 'binding' property

A property to bind an XBL binding to a particular element.

'binding'
Value: none | [ <uri> ',' ]* <uri>
Initial: none
Applies To: all elements (but not pseudo-elements)
Inherited: no
Percentages: n/a
Media: all
Computed Value: specified value, with URIs resolved to absolute URIs
none
No bindings are to be attached through CSS.
<uri>
The specified binding is attached. More than one binding can be specified, resulting in the bindings being attached in the specified order, with the last binding implicitly inheriting from the previous one, and so forth, up to the first binding. (See: implied inheritance)

Processing model

User agents may perform the CSS cascade, inheritance, and computation stages either across the entire tree, or per element, or per property per element, and either before applying bindings, or simultaneously, while applying bindings. In either case, for each element the computed value of 'binding' must be found and then used to apply the bindings to the element (when the element is first styled, and each subsequent time the styles that match the element change).

Since each time a binding is applied it can change the computed values of properties of elements that are descendants of the bound element, this may require several passes. This may be avoided by computing the value of the 'binding' property for the element, and then applying any bindings, before any of its descendants.

Attachment using the DOM

Bindings can be attached to elements through the DOM using the NodeXBL interface. The method addBinding takes a binding URI and attaches the binding to the element (in all views).

var checkbox = document.getElementById("mycheckbox");
checkbox.addBinding("http://www.example.org/xbl/htmlBindings.xml#checkbox");

This attachment is not necessarily synchronous. Scripts that invoke this method should not assume that the binding is installed immediately after this method returns.

When a binding is attached using the DOM, it inherits from the current most derived binding that is already be attached to the element, if any. (See: implied inheritance.)

Any bindings attached to an element using the addBinding method will remain on the element until the element is destroyed or a corresponding removeBinding call is made.

Binding Attachment Model

When a new binding is attached, the UA must perform the following steps in order (or act as if it did). Implementations may choose to suspend redraw during this process.

  1. If other bindings are already attached to the bound element, then the newly added binding will add a new chain to the element's binding chain. (See: binding inheritance .)
  2. Events must start being routed through the binding's handlerGroup element, when there is one. (See: event forwarding.)
  3. If the new binding has an implementation, it is compiled and inserted into the implementation chain and made available to scripts.
  4. The shadow content template is then cloned, if needed, to create the shadow tree:
    1. If no primary generating binding was attached, and the new binding has a shadow content template, or, if there was a shadow tree already attached to the bound element, and the new binding would result in the shadow tree changing, then any existing shadow content on the bound element is destroyed and a new shadow tree is then created. The prebind event is fired before it is attached. (See: rules for shadow content destruction, rules for shadow content generation.)
    2. Otherwise, if the binding has no shadow tree, a prebind event in the XBL namespace that bubbles but is not cancelable is fired on the bound element.
  5. Any bindings of descendants that are not yet attached, are then attached.
  6. Once all the bindings of any descendent elements are attached, a bound event in the XBL namespace that bubbles but is not cancelable is fired on the bound element.

We need to decide how to handle the case where a binding's definition is removed while it is being attached.

Binding Detachment Model

Before a binding is detached, an unbinding event in the XBL namespace that bubbles but is not cancelable is fired on the bound element.

The shadow content nodes, the shadow tree, the implementation, any forwarding of events to the binding, etc, are then removed from the element.

Summary of Events

The following events are fired during attachment and detachment:

{"http://www.w3.org/2004/xbl", "prebind"}
A new binding is in the process of being attached to the event target. This event is fired after the implementation, if any, has been installed and after the contents of the template element, if any, have been cloned but before attachment to the bound element's xblShadowTree and recursive XBL processing on shadow tree contents. (See: binding attachment model.)
{"http://www.w3.org/2004/xbl", "bound"}
A new binding has been attached to the event target, and all of its descendants in the final flattened tree for which bindings are to be applied have had the bound event fired on them.
{"http://www.w3.org/2004/xbl", "unbinding"}
A binding is being detached from the event target. This event is fired before the current contents of xblShadowTree are removed, before any implementation is uninstalled, and before the value of xblShadowTree is set to null.

All of these events bubble and cannot be canceled.

The prebind event must use the following interface:

interface ShadowTreeEvent : Event {
  readonly attribute XBLTemplateElement xblShadowTree;
  void               initShadowTreeEvent(in DOMString typeArg,
                                         in boolean canBubbleArg,
                                         in boolean cancelableArg,
                                         in XBLTemplateElement xblShadowTreeArg);
  void               initShadowTreeEventNS(in DOMString namespaceURIArg,
                                           in DOMString typeArg,
                                           in boolean canBubbleArg,
                                           in boolean cancelableArg,
                                           in XBLTemplateElement xblShadowTreeArg);
};

The two methods initialise the event in a manner analogous to other events in DOM3 Events. [DOM3EVENTS]

The xblShadowTree member must contain a pointer to the shadow tree being constructed, if any, and must be null otherwise.

Implied Inheritance

Bindings can inherit from each other explicitly using the extends attribute. They can also inherit from each other implicitly if multiple bindings are attached to an element.

The results of inheritance are described in the sections on binding implementations and shadow content.

When two bindings are both attached (using the mechanisms described above), to the same element, the base binding at the end of the inheritance chain of the second binding implicitly inherits from the most derived binding of the inheritance chain of the first.

If one of the binding chains is removed, then the remaining binding chains are reconnected so that the base binding of the chain after the break now inherits from the most derived binding before the break.

The order of bindings is always such that bindings added via the definition element are first (in the order the bindings are specified in the file, with the files, if there are more than one, ordered in the same order that they are referred to, traversed pre-order, depth-first), the bindings attached via CSS are second (in the order specified on the 'binding' property), and the bindings added via addBinding are third (in the order they were attached, most recently attached being the most derived binding).

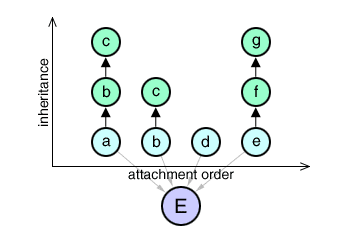

The implicit inheritance link can be pictured as having several explicit chains adjacent to each other, with the implicit inheritance chain going down each explicit inheritance chain sequentially.

For example, take a binding d1, which specifies a base binding d2 using the extends attribute such that its explicit inheritance chain is:

d1d2

If this element is attached to an element using addBinding that already has a binding chain of:

s1s2s3

...then the base binding at the end of the inheritance chain, d2, is the one that will inherit from the most derived binding that is already attached to the element, s3. The resulting binding chain following the addition of the binding is therefore:

d1d2s1s2s3

The inheritance between d3 and s1 is implicit, meaning that there is no connection in the XBL subtrees between the two bindings. The inheritance link has been forged dynamically through the invocation of the addBinding method.

Views and Attachment

Only one set of bindings is attached to the document, and they must affect all views in a multi-view UA. Bindings attached via stylesheets must be attached based on the stylesheets that apply to the default view.

Attachment During Document Load

Binding loads are asynchronous. That is to say, when a binding is added (either via stylesheet, script, or some other method), and the relevant binding document is not yet loaded, the load is started in the background and the binding is only attached once the document is available. An author can ensure that all bindings are synchronously attached by calling loadBindingDocument to pre-fetch any binding documents that are required.

The bound document must wait until all XBL dependencies have loaded before firing its load event.

Script contexts

Script must always be executed in the script context of the document specified by the script's element's ownerDocument DOM attribute. This implies that scripts from different bindings in the same binding doucment bound to different elements in the same bound document share the same scripting scope. If the bindings were defined in the document itself, then the scope is the same scope as for that document.

Binding Implementations

Bindings can define methods and properties on a bound element using the implementation element. A binding implementation provides a new set of methods and properties that can be invoked directly from the bound element.

Inheritance of Implementations

When two bindings in an inheritance chain both supply implementations, the derived binding's implementation inherits from the base binding's implementation. Method and property lookups are dynamic. Without disambiguating, if two bindings define the same method or property, then the most derived binding's method or property must be used.

Because bindings extend DOM elements, they can override any built-in methods or properties on the DOM element. For example, a binding could override the setAttribute method on Element or the retrieval of the value property for an HTMLInputElement.

Implementations can be named using a name attribute specified on the implementation element. When an implementation has a name, that name can be used to disambiguate the desired method or property. How this works depends on the language used.

ECMAScript Bindings

If the content is inline in the implementation element, UAs must concatenate all the textual contents of text and CDATA child nodes, and must ignore any other, non-text nodes (such as elements and comments) along with all their children. All child elements must be processed, though, according to their semantics, before the XBL implementation is evaluated, as for script blocks. (See: loading and running scripts)

If the content is in an external file, and that file is available and of the right type, then the contents are used literally.

Regardless of the source, the processing is the same. The implementation script has ({ placed at the start, }) placed at the end, and the result is then parsed as ECMAScript. If the result is a single expression evaluating to a single Object prototype is that the right terminology? then that is used as the prototype for the implementation for this binding. Otherwise, it is in error, there is no implementation for this binding, and the UA must ignore the implementation.

In an implementation definition, the names of base bindings can be used to identify specific methods using dot-notation.

For example, given a binding with an implementation ColorPickerGrid that derives from an implementation ColorPicker where the two implementations both specify the setColor method, a caller could invoke ColorPicker's method with the following syntax:

... // myElement is a ColorPickerGrid
myElement.ColorPicker.setColor(); // Calls the ColorPicker method.
myElement.setColor(); // Calls the ColorPickerGrid method.
...

In addition to being able to specifically name a base class, the name baseBinding can be used to specify the method or property on the base binding without necessarily knowing what the base class is. This situation can occur when bindings implicitly inherit, e.g., through the use of addBinding.

myElement.baseBinding.setColor(); // Calls the ColorPicker method.

Shadow Content

A binding can specify a shadow content template using the template element. This template describes a content tree that will be generated under the bound element during binding attachment. An element declared in a bound document using a single element can then be constructed out of multiple child elements, and this implementation is hidden from the bound document.

When the shadow content template is cloned (as described in this section), the clone is called a shadow tree.

For example, the HTML file upload control appears in most browsers as a composite widget consisting of a text field and a button. A sample XBL binding for the file widget might look as follows:

<binding id="fileupload">
  <template>
    <html:input type="text"/>
    <html:input type="button"/>
  </template>
</binding>

Because this content is not visible to its parent element, it is said to be shadow content.

The file control is actually a special case. Due to security considerations, untrusted bindings will typically not be able to extend the file upload control in UAs intended for use with untrusted content.

Rules for Shadow Content Generation

Whenever bindings are attached to an element, shadow content will potentially be generated or destroyed.

When a template element is mutated in any way, any bindings whose shadow tree was constructed from that element must be reconstructed as described in this section.

If a definition element that had no template element has a template element added, then a shadow tree is generated. If the template element is removed, then the shadow tree is destroyed.

The template element used to generate a binding is always the first such element in a definition element. If the definition element is mutated in a way which changes which template element is the first, then the shadow tree is also reconstructed.

Everything described in this section up to the firing of the event, and everything described in this section after the firing of the event, must be completed atomically — that is, the UA must not execute author scripts during those two parts of the process. User agents may optimise this algorithm so long as the end result is the same.

The bindings in the binding's explicit chain are first checked to see if any have shadow content templates. If any do, then the most derived such template is the primary generating binding. Otherwise, there isn't one.

If there is no primary generating binding, then no shadow content will be generated for the bound element, its xblShadowTree attribute will be null, and its xblChildNodes attribute will equal its childNodes attribute (except in certain cases involving attribute forwarding).

If there is a primary generating binding, then its first template element is deeply cloned.

If the cloned content contains any inherited elements and there is a base binding with a shadow content template of its own, then that most derived base binding with a template has its template cloned and its first inherited element, if any, handled as for the primary generating binding, recursively until either a template is reached that has no inherited elements, or the last template is reached. Then, the children of this most derived base binding's template are used to replace the inherited element. The template element itself is then discarded.

Any remaining occurrences of inherited elements after the base bindings have all been folded in as described above are replaced by their children nodes.

One way to implement the replacement of one element by the child nodes of an element (possibly the same one) is to move all the relevant child nodes into a DocumentFragment and then replace the element by that fragment using the replaceChild method.

The xml:base data of the cloned nodes must be set so that the baseURI of nodes in the resulting shadow tree is the same as their pre-cloning counterparts. All shadow nodes' ownerDocument pointers are left pointing at the binding document's Document node.

The newly cloned template element is then renamed to be a shadowTree element in the XBL namespace.

No mutation events must be fired during the above steps.

A prebind event in the XBL namespace that bubbles but is not cancelable is fired on the bound element, with the shadowTree element as the event data.

The bound element's xblShadowTree attribute is set to point to the root shadowTree element of this tree of clones.

The shadow tree is then applied to the bound element: the xbl* DOM attributes are updated and the CSS cascade and inheritance should be computed.

Some implementations might optimize this algorithm, such as using "lazy evaluation" approaches and thereby postpone the cascade and inheritance operations.

Attribute Forwarding

Attributes on shadow content elements can be tied to attributes on the bound element; then, whenever the attribute is set or removed on the bound element, the corresponding attribute on the shadow content is also set or removed. On any shadow content element, an xbl:inherits attribute can be used to specify a space-separated list of attributes that should be inherited. Attributes with namespaces can be defined using a namespace prefix and the attribute name separate by a colon.

Values must be resolved to a valid qualified name (QName) using the attribute QName resolving semantics and the namespaces prefix declarations in scope on the element on which the xbl:inherits attribute is found. Any value in the list that does not resolve to a valid QName is in error and must be ignored. [XMLNS]

For example, returning to the HTML file upload control example above, the shadow textfield can be set up to automatically inherit the value attribute from the bound element.

<xbl:binding id="fileUploadControl">
  <xbl:template>
    <html:input type="text" xbl:inherits="value"/>
    <html:input type="button" value="Browse..."/>
  </xbl:template>
</xbl:binding>

Each entry in the xbl:inherits list can either simply list an attribute (such as value in the example above), or it can specify an =-separated pair consisting of the attribute on the shadow content that should be tied to the attribute on the bound element. The new shadow content attribute is listed first.

The special value xbl:text can be used in an =-separated pair, where the prefix defined is the XBL namespace. (The value is not a literal; it represents the fictional "text" attribute in the XBL namespace.)

When specified on the left-hand side of the pair it indicates that the attribute on the right-hand side should be stored as text nodes underneath the shadow element in the xblChildNodes list. If the element has other nodes in its xblChildNodes list then the pair is in error and UAs must ignore it, meaning the attribute value is not forwarded.

Text nodes created in this way are orphans; their parentNode, nextSibling, previousSibling, childNodes, firstChild, and lastChild attributes are all null or empty. Their ownerDocument attribute is set to the same as the shadow content node that generated them. Similarly, their xblParentNode attribute points to the element that generated them and their xblNextSibling, xblPreviousSibling, xblChildNodes, xblFirstChild, and xblLastChild attributes are all null or empty.

When used on the right-hand side, it indicates that any raw text nodes (including CDATA nodes) that are explicit children of the bound element should be coalesced and the resulting value should be stored as the attribute on the left-hand side.

The xbl:text value cannot occur by itself in the list. It may be used only in an = separated pair where at least one value is not xbl:text. If it occurs by itself, it is in error and UAs must ignore that value in the space-separated list that is the xbl:inherits attribute.

Any other values in the XBL namespace in the list are in error and must be ignored. (In particular, trying to change or set the value of xbl:pseudo or, worse, xbl:inherits, must not result in any changes to any attributes.)

Processing content elements

The shadow content template may contain content elements that define where explicit children should be inserted in the shadow content.

What about nested bindings, where the inner bound element is the parent of a content element and itself has a template with content elements? Do the inner content elements match the repositioned explicit elements, or the inner content element? If the former, we need to define this. The latter would mean encapsulation was broken.

Any inherited elements are handled when the shadow tree is cloned, and content elements are handled when the shadow tree is then attached to the bound element. This ensures that all the content elements, from the primary generating binding's shadow content template, inherited shadow content templates, and fallback content in inherited elements that were not replaced by inherited shadow content templates, are taken into account. (See: rules for generating shadow content.)

XBL bindings can interleave shadow content between bound elements and their explicit children. They do so using XBL's content element. Any number of content nodes may be used in a binding's shadow content template.

Expressions specified using the includes attribute determine which content element a given child should be placed under.

Request for public feedback

The XBL task force has not yet decided the syntax to use for includes attribute.

We have received a number of comments suggesting that XPath (or an XPath subset) is preferred.

It has been pointed out, however, that, on the long term, an approach based on XPath would suffer from a number of problems, including amongst others the following:

One problem in deciding whether Selectors or XPath is the better solution is that XBL is targetted at several audiences, including a primarily HTML- and CSS-driven audience (Web authors), and a primarily XML-driven audience. The former are more familiar with Selectors, and the latter more familiar with XPath.

If no includes attribute is specified, a content element is considered generic and will match on all content, including text nodes, CDATA nodes, comments, and so on.

The content element used for a given piece of content is the first encountered with an expression that matches the element and that is not locked when doing a pre-order, depth-first walk of the shadow content template.

The content element itself is present in the shadow content, but is not visible in the xblChildNodes list. In that list, it is simply replaced by the elements that matched it, or, if there were no matches, by its contents.

If an explicit child of the bound element does not match any of the content element in the shadow tree (or if there are no content elements in the shadow tree), then that child does not appear in the final flattened tree.

Processing inherited elements

The inherited is used to place the shadow content generated by the next binding in the chain that contributes shadow content. That binding can use a inherited element for its base binding as well. This pattern continues all the way up the binding chain.

If there is no base binding with a shadow content template or if the base binding's content has already been placed into the shadown tree by an earlier inherited element, then the contents of the inherited element are cloned and inserted instead, with any nested content elements providing insertion points for explicit content as appropriate.

The inherited element never appears in the shadow content, as it is replaced as described above before the shadow tree is completed. (See: rules for shadow content generation.)

Handling DOM Changes

All of the nodes in the shadow tree are live. Whenever an element is inserted into, removed from, or appended to the DOM, all the children must check that their assigned content element is still appropriate, following all the same rules that applied when first placing explicit children during shadow content generation. If one or more nodes stop fitting into any of the content elements then they no longer appear in the final flattened tree.

It is possible to manipulate the shadow content contained underneath a bound element using standard DOM APIs. If shadow content that contains a content element is removed, then any explicit children assigned to that element are relocated to the first unlocked content elements that match them.

content elements may be dynamically locked by manipulating their locked attribute. A locked content element cannot accept new children unless they are explicitly assigned to it using the xblSetInsertionPoint() method. However, children already under a locked content element must remain there while the element's includes attribute (or lack thereof) matches them.

Whenever the subtree of a template element is dynamically modified, any shadow trees that were constructed by cloning that element must be reconstructed. (As no events are fired during this process, there is no way for such bindings to update their shadow trees after it happens.)

Shadow Content and CSS

Special care should be used when considering the interactions of CSS and XBL.

Terminology

Shadow content introduces the concept of shadow scope to nodes within a document. Because shadow content elements can also have bindings attached that generate their own shadow content, this scoping can be taken to an arbitrary level of nesting.

Explicit content is said to be at the document-level scope, which is the highest, or outermost, shadow scope. Shadow content nodes are in their own binding-level shadow scopes. Binding scopes are determined by the bound element that contains the binding responsible for the generation of the shadow nodes. The bound element itself is in the shadow scope of the content around it, and its binding's shadow content is in a deeper shadow scope. Shadow content that contains no elements that are themselves bound is said to be in the deepest, or innermost, shadow scope.

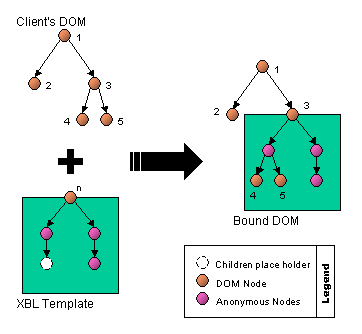

The resulting tree, after all children have been assigned to content elements and all attributes forwarded, is called the final flattened tree, and is the tree used by the rendering model. (See: selectors and shadow scopes.)

Selectors and Shadow Scopes

Bindings can interleave shadow elements between the bound element and its explicit children. (See: processing content elements.) In this situation, a new tree emerges that is different from the explicit content node tree. In addition to having a single explicit parent (the bound element) and a single set of children (the explicit children in the DOM tree), elements also have a set of shadow parents and and shadow children (introduced by bindings when content elements were used). This necessarily affects the CSS model.

Combinators: CSS combinators, in the presence of XBL, must act as follows. This is intended to match the definitions of CSS in all cases other than when a selector would involve the XBL elements.

A>B

If "B.parentNode" is an insertion point (a content element), let "X" be "B.parentNode.parentNode", otherwise let "X" be "B.parentNode".

Now if "X" is the root of a shadow tree, but "allowSelectorsThrough" is false, it doesn't match "B". Otherwise, if "X" is the root of a shadow tree and "allowSelectorsThrough" is true, then let "X" be "B.xblBoundElement".

Then, it matches "B" if the "X" element is the "A" element.

A B
Matches "B" if either "A>B" matches "B", or "C>B" matches "B" and "A C" matches "C".
A+B
If "B.previousSibling" is an insertion point (a content element), it doesn't match "B", otherwise, it matches if "B.previousSibling" is "A".
A~B
Matches "B" if either "A+B" matches "B", or if "C+B" matches "B" and "A~C" matches "C".

Pseudo-classes and pseudo-elements: Pseudo-classes and pseudo-elements are unchanged in the presence of XBL. They operate exclusively on the core DOM.

In particular, note that this means that the selector :nth-child(odd) would match both the A and B nodes in the following example:

<xbl:template>
  <A/>
  <xbl:content>
  <B/>
 </xbl:template>

...regardless of the number of nodes that are inserted at the insertion point given by the content element (whether that be 0, 1, 2, or more nodes).

Inheritance: The final modified content tree determines how CSS properties (e.g., fonts and colors) are inherited. An element either ends up underneath its explicit parent (just as in the content model), or it ends up being nested through a series of content elements. When nested, it inherits from the innermost shadow parent.

In DOM terms, this corresponds to inheritance using the xblParentNode attribute.

The :xbl-bound-element pseudo-class

The :xbl-bound-element pseudo-class matches any bound element.

Matching Pseudo-elements

Shadow nodes may be associated with various pre-defined pseudo-elements of the bound element. On any element in the shadow content template, an xbl:pseudo attribute (in the XBL namespace) can be used to specify the name of the pseudo to associate with that element.

For example, once more returning to the HTML file upload control example above, the shadow textfield can be set up to be considered a match for the selector input[type=file]::value as follows.

<xbl:binding id="fileUploadControl">
  <xbl:template>
    <html:input type="text" xbl:pseudo="value"/>
    <html:input type="button" value="Browse..."/>
  </xbl:template>
</xbl:binding>

The pseudo must be given without its leading double colon.

If the pseudo-element name is not recognised, it is in error and the UA must ignore the attribute. User agents must not automatically recognise any pseudo-element (as this will break forwards-compatibility).

If an element has multiple nodes with the same pseudo-element, then they all match the relevant selector. Matching of nodes based on their pseudo-element is unaffected by the applyAuthorSheets attribute.

The allowed pseudo-elements are:

::value
Intended to represent the entire rectangular 'interactive area' (or the nearest equivalent in non-visual environments) of a text-entry form control, specifically excluding the caption.
::choices
Intended to represent the entire rectangular 'selection area' (or the nearest equivalent in non-visual environments) of a list form control, specifically excluding the caption.
::label
Intended to represent the non-interactive area (or the nearest equivalent in non-visual environments) of control, typically the caption.
::repeat-item
Within a repeating sequence, for example generated by the repeat construct in XForms, each repeated item could be labelled as matching a pseudo-element ::repeat-item.
::icon
Intended to represent the icon part of a control, for example the picture in a toolbar button or the icon next to a menu item.

These pseudo-element descriptions are purely advisory, and while authors are encouraged to use them for their predefined roles, it is valid to use them for other purposes.

The following XBL is part of the definition of a button control.

  <xbl:binding id="imageButton">
    <xbl:template>
      <html:span xbl:pseudo="icon"/>
      <html:span xbl:inherits="xbl:text=title"/>
    </xbl:template>
  </xbl:binding>

This control could then be used like this:

<button title="Save" class="save-button"/>

...and styled like this:

  button { binding: url(buttons.xml#imageButton); }
  button.save-button::icon {
     content: url(icons/save.png);
  }


In property descriptions, the term "all elements" in the "Applies To:" line includes these pseudo-elements, as they map directly to real elements in the binding.

Shadow Content and SVG

This will eventually be moved to the SVG specification.

In XBL, the SVG rendering model is subtly altered to handle elements with shadow trees.

Painting: When painting groups, for child elements that have xblShadowTrees, instead of painting the child element itself, the group should paint the nodes in that element's xblChildNodes list.

ID references and URIs: When a URI identifies an element with an xblShadowTree, the SVG processor must use the first element node given by the element's xblChildNodes list instead of the element itself. If there are no elements, or if there is more than one element, then the document is in error.

Shadow Content and xml:base

This section is intended to re-iterate what the xml:base specification already states, in case there is any question about how xml:base processing should work in shadow trees.

Relative xml:bases on nodes in shadow trees are resolved relative to their parentNode, or the ownerDocument if there is no parentNode.

Shadow Content and Other Things

This section needs to be rewritten and tidied up so that it has subsections, and also has general rules for languages that aren't covered by this section. Things that need to be defined include binding to html:script, html:select, html:textarea, MathML nodes, etc (are their semantics based on the shadow tree, the final flattened tree, or the original tree), as well as having elements inside the shadow tree such as html:script, html:style, html:map, form controls (are they part of the outer form), html:form (does it wrap elements that are assigned to content elements?), etc.

Since the processing rules of all non-XBL elements found while processing a binding document are not affected by their being part of an XBL subtree, there are certain elements that are unlikely to have the desired effect when included in shadow content templates. Some of these cases are described below.

While some of these effects may seem peculiar, it must be emphasised that they are merely the result of XBL not affecting the semantics of these elements at all. It would have been possible to define XBL in such a way that the semantics of various elements from the SVG, XHTML, XML Events, etc, namespaces were modified, but this would have required XBL knowing about special elements from a large number of namespaces, causing XBL implementations to have large interdependencies.

General rules

Shadow content is not considered part of an document, so elements that are defined to trigger when they are "inserted into the document" do not trigger during binding attachment.

IDs used in shadow content, as seen on XML Events nodes, in XHTML on the html:label element's for attribute, and in many other places, must be resolved in the context of the shadow scope, not the document-level scope of the document into which the shadow content is inserted.

When the nodes are cloned, their xml:base data remains as it was in the bindings document (see rules for content generation). Therefore URIs consisting of just fragment identifiers (such as those in url() notation in style attributes of, e.g., SVG or XHTML nodes) refer to resources in the bindings document, not content in the bound document or the shadow scope.

Stylesheets blocks

The semantics of svg:style and html:style elements is that they introduce new styles for their document. Since the document, in the case of anything in an XBL subtree, is the bindings document (or the compound document in which the XBL subtree is found), that is the document that must be affected by such a stylesheet.

If one of these style elements is placed in a shadow content template, then the document into which the shadow content is later inserted during binding attachment must not be affected, and the bindings document itself must only be affected once (by the node in the binding document), not by any of the clones created.

Script blocks

Script elements, such as html:script and its ilk, are typically evaluated only during parsing, or during parsing and when inserted into a document. In all cases, however, they are evaluated in the context of their owner document. Therefore such elements must only be evaluated during initial parsing, in the context of the XBL subtree's document, and not during binding attachment.

Event handler blocks

XML Events elements in the binding document must result in event handlers being registered as event listeners on the nodes in the original bindings document (including possibly the template node) as described in XML Events. They may be included in shadow content templates, but when the shadow content template is cloned, the newly cloned event handlers must cause new event listeners to be added to their new DOM Core parent nodes. Thus an event handler that is the child of an template element in the shadow content template will never fire once it has been cloned, since the events do not bubble into the shadowTree element. [XMLEvents]

Binding Stylesheets

Shadow content nodes and bound elements are styled using stylesheets from a number of sources, depending on the values of certain attributes. When multiple bindings are applied to the same bound element, the sheets from each binding all contribute to the final set of stylesheets to apply; the stylesheets of the most derived binding being walked first. For each binding, the stylesheets that apply are as follows, in the order given:

Stylesheets of the binding document: While applyGlobalSheets is not set to false on the shadowTree element found from the bound element's xblShadowTree DOM attribute, the stylesheets of the binding document, in the order specified in that document, must be applied to the shadow content. They are never applied to the bound element.

When using binding document stylesheets, if the binding document specifies alternate stylesheets, the stylesheets used must be those that are appropriate for the currently selected stylesheet set in that document. This may differ from the selected stylesheet set of the bound document.

Scoped stylesheets: A binding file can load stylesheets using the style element. (See: loading stylesheets.) These stylesheets must be applied to the bound element and to all shadow content attached to the bound element.

If the binding was attached using CSS, the scoped stylesheets and the stylesheets from the binding document have the same CSS origin as the sheet with the rule responsible for the binding. Stylesheets used by bindings that are attached using the DOM or using import are treated as author-level sheets.

When bindings from multiple levels are applied to the same bound element, the stylesheets that apply must cascade according to their own levels.

An element E attaches binding U from the user agent stylesheet, and binding A from the DOM, which places A in th author level. When the stylesheets that apply to E are sorted, U must be applied at the UA level and A at the author level.

Author sheets: While the applyAuthorSheets attribute on the shadowTree element found from the bound element's xblShadowTree DOM attribute is set to true, the rules specified in any author sheets at outer shadow scopes must be applied to the shadow content. Otherwise, only those matched through predefined pseudo-elements are used, and other author-level sheets in higher shadow scopes must not be applied to the shadow content. (The bound element is always styled using the sheets of higher shadow scopes.)

By default, stylesheets specified in bindings (as described above) are applied only to shadow content generated by bindings attached to the bound element and to the bound element itself (in some cases). A third attribute, applyBindingSheets, can be used to indicate that all children of the bound element, both shadow and explicit, can be styled by the sheets in the binding's document. This can be controlled on a per-insertion-point basis. While this attribute is set to true on a content node in the shadow tree DOM, any nodes that are assigned to that element, and any descendants of those nodes, must have the scoped stylesheets of the binding (those that apply to the shadow content as described above) applied to them too.

Sheets are always walked from the innermost shadow scope to the outermost shadow scope (with rules in the outermost shadow scope therefore overriding rules of equal specificity in the innermost shadow scope). With this ordering a binding that defines a widget can define a default look for the widget that can then be easily overridden by a client of the widget. For multiple bindings attached to the same element, the sheets are walked from the base binding down to the most derived binding.

User agent sheets and user sheets are always applied to all shadow scopes.

Since styles from both author stylesheets and binding stylesheets are applied to the bound element, it is possible for an infinite loop to form where an author sets the 'binding' property to a particular binding that then explicitly sets the 'binding' property to 'none' (or another binding). This specification does not take any precautions to avoid this, any more than it takes precautions to avoid loops caused by binding constructors explicitly calling removeBinding to remove the binding itself and binding detachment event handlers reattaching the bindings. Similar potential loops exist also in underlying technologies, for example :hover rules that cause elements to no longer be hovered, or focus event handlers that move focus to an element and blur event handlers that move focus back to the element.

In so far as XBL is concerned, authors must avoid constructing such loops, and implementers must ensure that such loops do not prevent users from interacting with the user agent.

Event Handlers

Event forwarding

Often, XBL developers will want to register the same event listener on all bound elements corresponding to a given definition element. For example, suppose your XBL contains the following definition:

<xbl:definition element="myNS:button">
  ...
</xbl:definition>

And suppose you create three instances of "myNS:button" as follows:

<myNS:button id="b1">...</myNs:button>
<myNS:button id="b2">...</myNs:button>
<myNS:button id="b3">...</myNs:button>

And suppose you want to attach a "DOMActivate" event listener to each of the three instances. You can certainly register three separate event listeners using either three separate event listener registration elements (e.g., in the case of SVG, you can use svg:handler) or using three separate DOM method calls (e.g., three calls to EventTarget::addEventListener). However, sometimes it is more convenient to define the event listener once as part of the definition element and then have the given event listener (in effect) automatically assigned to each bound element instance that corresponds to the given definition.

In order to provide such convenience, XBL provides an automatic event forwarding mechanism for all events listeners attached to a handlerGroup element.

Every time an event fires on a bound element (whether during the capture, target, or bubbling phases), if any event listeners for the given event exist on the corresponding handlerGroup elements, then those listeners must be invoked.

To illustrate, if we update the above example to add handlerGroup and handler elements as follows:

<xbl:definition element="myNS:button">
   <xbl:template>...</xbl:template>
   <xbl:handlerGroup>
      <handler event="DOMActivate"...>...</handler>
   </xbl:handlerGroup>
</xbl:definition>
...
<myNS:button id="b1">...</myNs:button>
<myNS:button id="b2">...</myNs:button>
<myNS:button id="b3">...</myNs:button>

The result is that the user agent must automatically attach an implicit "DOMActivate" event listener to each myNS:button element. If the DOMActivate event is fired and dispatched to any of the myNS:button elements, then the user agent must invoke DOMActivate event handlers defined by the handler element.

Event listeners attached to the handlerGroup elements must always be fired after all the appropriate event listeners on the bound element itself, in both the capture and bubbling phase.

Since XBL handlers usually constitute the default actions for a widget, this allows authors in the bound document to write event handlers that potentially suppress the default actions taken by the XBL handlers (by using the stopImmediatePropagation() method).

Within an XBL inheritance chain, event handlers always fire first on the derived binding and then on the base binding in the chain. A derived handler then has a way of preventing the event from flowing to its base binding handlers (again by using the stopImmediatePropagation() method).

Notes

Event forwarding and the handler element

Event handlers are defined using handler and handlerGroup elements. A handler specifies what event it is listening for using the event attribute. The handler may contain script that is executed when an event flows to the bound element if that event matches all of the criteria specified by the handler. The handler may also use the handler attribute to specify another resource that is used when those criteria are met.

The most basic handler specifies the event to listen for and an action to take when the handler fires. This action is specified by giving a script as a child of the handler element. (See: loading and running scripts.)

By default, events are registered as bubbling and target events. This means that:

<handlerGroup>
 <handler event="click"> foo() </handler>
</handlerGroup>

...is analogous to onclick="foo()" defined on the bound element. (The main difference is that in the XBL version, the script is run in the context of the binding document instead of the bound document context.)

The propagate attribute specifies whether after processing all listeners at the current node, the event is allowed to continue on its path (either in the capture or the bubble phase). The possible values are stop and continue (the default). If stop is specified, then after the event handler has been fired, the event's stopPropagation() method is called.

The defaultAction attribute specifies whether after processing of all listeners for the event, the default action for the event (if any) should be performed or not. For instance, in XHTML the default action for a mouse click on an html:a element or one of its descendents is to traverse the link. The possible values are cancel and perform (the default). If cancel is specified, then after the event handler has been fired, the event's preventDefault() method is called.

Event listeners registered with handler elements are registered in the default event group.

Criteria for Event Handlers

The event attribute is required and specifies the event type (and possibly namespace) for which to fire the handler. Its value can be any legal DOM event QName (including custom events created using the DocumentEvent interface of the DOM). For DOM3 Events support [DOM3EVENTS], the value should be a QName with a prefix bound to the relevant namespace, and must be resolved to a namespace and local name using the attribute QName resolving semantics and the namespaces prefix declarations in scope on the element. [XMLNS] If the value is a simple Name (no prefix), then the namespace is assumed to be null.

If the attribute is omitted, or if the attribute is present but the value cannot be resolved to a namespace and local name as described above, then the element in error. Such Event handlers do not have an event listener for the element added to the handler group.

The phase attribute specifies the phase of event flow that the handler is registered for. The possible values are default, which means the handler will only fire if event.target is the bound element or if the event is in the bubbling phase of event flow, and capturing, which indicates the handler should fire during the capturing phase of event flow.

If the attribute is omitted, the behavior described for default is used. Unrecognised values are in error and UAs must ignore them, causing the event handler to be treated as if default was specified.

The target attribute specifies an ID that the event target must have for the event to fire. The ID is never resolved, it is simply compared case-sensitively to the ID of the event target (if any) each time the event handler is considered. If the attribute is present but its value is the empty string, then no events will ever cause the handler to be fired (since IDs cannot be the empty string). If an event target has no ID then it cannot be matched by an event handler with a target attribute.

If the attribute is omitted, then any event target is considered a match.

Mouse, key, and mutation event handlers have certain additional attributes on their event objects that are supported by XBL. Additional attributes on the handler element can be used to impose a filter on the event handler. When a filter is imposed, the event object [DOM3EVENTS] must meet additional conditions before the event handler will fire.

Mouse Event Handler Filters

For events that use or derive from the MouseEvent interface, two filter attributes may be used. (All other filter attributes, if specified, are in error and UAs must ignore them.)

The filters are:

button
A space separated list of values, at least one of which must exactly match the button attribute on the event object for the XBL event handler to fire. If the attribute is not specified, then any value of the button attribute on the event object must be considered a match.
clickcount
A space separated list of values, at least one of which must exactly match the detail attribute on the event object for the XBL event handler to fire. If the attribute is not specified, then any value of the detail attribute on the event object must be considered a match. Note that this is checked for any event that uses the MouseEvent interface, not just those for which detail is defined. Authors should take care to not specify this attribute with, for example, mouseover events, since in that context detail is undefined.
modifiers
A space separated list of values. For the XBL event handler to fire, all of the specified modifier keys must be marked as pressed on the event object. If the attribute is not specified, then any combination of modifiers on the event object must be accepted a match.

Key Event Handler Filters

For events that use or derive from the KeyboardEvent interface, three filter attributes may be used. (All other filter attributes, if specified, are in error and UAs must ignore them.)

The filters are:

key
The key identifier. If specified, the value must be an exact literal match of the keyIdentifier attribute of the event object. For example, Enter. If this filter is specified, then the modifiers attribute, even if not explicitly specified, must be matched as well.
keylocation
A space separated list of values from the four literal (case-sensitive) keywords standard, left, right, numpad, which map to the DOM values 0x00, 0x01, 0x02, or 0x03 respectively. If specified, the event object's keyLocation attribute must have a value equal to the numeric value of one of the specified keywords. Unknown and duplicate values are in error and UAs must ignore them (although without dropping any correct values).
modifiers
A space separated list of values. For the XBL event handler to fire, all of the specified modifier keys must be marked as pressed on the event object. If the attribute is not specified, then any combination of modifiers on the event object must be accepted a match, unless the key attribute is also specified, in which case no modifiers must be pressed at all (same as if the attribute was present but set to the empty string).

Text Input Event Handler Filters

For events that use or derive from the TextEvent interface, one filter attribute may be used. (All other filter attributes, if specified, are in error and UAs must ignore them.)

The filter is:

text
The text data to match. If specified, the value must be an exact literal match of the data attribute of the event object.

Mutation Event Handler Filters

For events that use or derive from the MutationEvent interface, four filter attributes may be used. (All other filter attributes, if specified, are in error and UAs must ignore them.)

The filters are:

prevvalue
If specified, the value must be an exact literal match of the prevValue attribute of the event object.
newvalue
If specified, the value must be an exact literal match of the newValue attribute of the event object.
attrname
If specified, the value must be an exact literal match of the attrName attribute of the event object.
attrchange
A space separated list of values from the three literal (case-sensitive) keywords modification, addition, removal, which map to the DOM values 0x00, 0x01, or 0x02 respectively. If specified, the event object's attrChange attribute must have a value equal to the numeric value of one of the specified keywords. Unknown and duplicate values are in error and the UA must ignore them, although without causing correct values to be dropped.

There are currently no attributes specifically designed to be used with events that use the MutationEventName interface.

Modifier Keys

For mouse and key handlers, the modifiers attribute may be specified (see above). Its value is a space separated list of zero or more of the following literal case-sensitive keywords:

ctrl
If specified, the ctrlKey attribute on the event object must be true, otherwise it must be false.
shift
If specified, the shiftKey attribute on the event object must be true, otherwise it must be false.
alt
If specified, the altKey attribute on the event object must be true, otherwise it must be false.
meta
If specified, the metaKey attribute on the event object must be true, otherwise it must be false.
accel
If specified, the attribute the event object that maps to the platform's primary accelerator key must be true, otherwise it must be false.
access
If specified, the attribute the event object that maps to the platform's primary shortcut mnemonic key must be true, otherwise it must be false.

Alternatively it can be the exact string literal none, in which case all four attributes on the event object given above must be false.

It is left up to the user agent to decide which modifier keys represent the primary accelerator and shortcut mnemonic keys, but they must be one of the four keys listed above.

This attribute is not defined in terms of the complete modifiersList parameter and getModifierState method. Should this change?

Event Flow and Targeting Across Shadow Scopes

DOM events can fire on shadow targets just as they can on explicit targets. As long as the event flows within the same shadow tree scope, it is no different from the behavior outlined in the DOM Events specification.

Events must flow through the final transformed content model (the final flattened tree) after all elements have been repositioned through the usage of content elements.

Whenever events originating from a shadow tree flow from a shadow element in that shadow tree to the bound element, one of two actions occurs. Either the event is retargeted so that the bound element becomes the target, or the event is stopped and flow proceeds to the next phase. Whenever an event is retargeted, the event is cloned, with the clone's target field set to the bound element. The original event pointing at the shadow content responsible for the event can be obtained from a new field of the event object, originalEvent, which is set to the event that was cloned.

The action taken (retarget vs. stop) is specific to the event type. In general, UI events must be retargeted and mutation events must be stopped. Exceptions to the rule are noted below. The goal of this retargetting or stopping is to stop outer shadow scopes from being exposed to nodes from inner shadow scopes, and to stop outer shadow scopes from getting apparently meaningless events that only make sense in the context of inner shadow scopes.

During the capture phase, the semantics are exactly reversed. The first node to see the event is the node after which bubbling stops; and the target node, when the event is passing through a node at a higher shadow scope than the event target, is always the bound element in whose shadow content the event target lies.

Focus, DOMFocusIn, Blur, and DOMFocusOut Events

If shadow content underneath a focusable bound element loses focus and shadow content also underneath the bound element takes focus, then both focus change events must be stopped. As far as the bound element is concerned, it retains focus throughout the two events. (Other specifications may go into more detail as to how to determine if an element can be focussed.)

The 'nav-index' property defined in the CSS UI module [CSS3UI] can be used to specify the tab order for focusable elements. This property can be specified on shadow content. Each shadow scope has a unique tab order. The 'nav-index' values used in one shadow scope are ignored by other shadow scopes. The tab order is resolved in the shadow tree first to produce a list of elements in the tab order. This list is substituted in place of the bound element in the bound element's tree tab order.

This example illustrates what happens with focus if the shadow tree contains focusable elements. The example shows a binding for an element named FirstAndLastNames. The shadow tree for the binding contains two SVG editable text fields, one for the first name and one for the last name.

<svg viewBox="0 0 200 60"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmsns:myNS="http://www.example.com">
   <defs>
     <xbl:xbl>
       <xbl:definition element="myNS:FirstAndLastNames">
         <xbl:template>
           <g font-size="16">
             <text x="10"  y="10">First name:</text>
             <text x="110" y="10" id="C" editable="true" nav-index="1"/>
             <text x="10"  y="30">Last name:</text>
             <text x="110" y="30" id="D" editable="true" nav-index="2"/>
           </g>
         </xbl:template>
       </xbl:definition>
     </xbl:xbl>
   </defs>
   <g transform="translate(20,30)">
     <text x="10"  y="10">Customer number:</text>
     <text x="110" y="10" id="A" editable="true" nav-index="10"/>
   </g>
   <g id="B" transform="translate(20,50)" nav-index="20">
     <myNS:FirstAndLastNames/>
   </g>
</svg>

Tabbing through the document will go from A to C to D, not C to D to A.

As an example, consider the HTML file upload control. It is a focusable element that in turn is made up of two focusable shadow elements: a textfield and a button. Tab indices can be specified on the textfield and the button to indicate the order in which the components of the file control should be accessed when tabbing.

When the user tabs such that the file control should become focused, the user agent determines if any shadow content should also become focused, using the tab order specified by the shadow content elements. It then generates a focus event on the textfield inside the file control. As this event flows across shadow scopes, it is retargeted to be a focus event on the file control itself.

Focus events should also be stopped if the bound element is already focused. For example, if the user has already focused the textfield within an HTML file upload control, then the file upload control is now also focused. If the user then focuses the button inside the file upload control, the focus event generated for the button is stopped before it reaches the file control, since the file control is already focused.

Because content in multiple shadow scopes can be focused, the CSS :focus pseudo-element is hierarchical in the presence of XBL, with up to one element in each shadow scope matching the pseudo-class. Style rules can be written with the assumption that they will match (in the above example) both the file control and the element focused inside the file control. In other words, an arbitrary chain of elements can be in the :focus state at the same time. (Further specifications may describe this in more detail.)

Mouseover and Mouseout Events

Mouseover and mouseout events must be retargeted if the pointing device genuinely moves onto (enters) or is moved away (exits) the bound element (in addition to entering or exiting some shadow content). If, however, the user has simply moved the pointing device from one element in the shadow tree to another element in the same shadow tree, without entering or exiting the bound element itself, then the event must be stopped.

For example, if the user enters the HTML file upload control from the left, a mouseover event is generated for the shadow textfield. Because this event also constitutes a mouseover of the file control itself, the event is retargeted when it flows across shadow scopes. If the user then moves the mouse from the textfield to the button, a mouseout is generated for the textfield, followed by a mouseover of the button.

Since neither of these events constitutes a mouseover or mouseout of the file control itself, the events are not allowed to flow to the file control. If the user continues moving to the right and leaves the button, then the mouseout generated will be retargeted, since the file control will also have been exited.

DOM Interfaces

XBL introduces a few XBL-specific interfaces.

The DocumentXBL Interface

The DocumentXBL interface contains methods for loading and obtaining binding documents. The interface is implemented by DOM documents that support having their elements bound by XBL.

IDL Definition
interface DocumentXBL {
  readonly attribute NamedNodeMap bindingDocuments;
  Document loadBindingDocument(in DOMString documentURI);
};
Attributes
bindingDocuments of type NamedNodeMap, readonly
The bindingDocuments attribute is a NamedNodeMap of all the binding documents loaded by the document. Documents are referenced using their URIs.
Methods
loadBindingDocument
The loadBindingDocument method can be used to synchronously obtain the document of a specified binding document for use within a particular document (the one on which the loadBindingDocument method was invoked). The binding document can then be modified programmatically using the DOM. (See: loading bindings.) If the load succeeded, it is also added to the bindingDocuments attribute.
Parameters
documentURI of type DOMString
The URI of a binding document.
Return Value
Document
The return value of loadBindingDocument is the document of the binding document used by the calling document to attach bindings that are defined in the binding document, or null if the load failed.
No Exceptions

The NodeXBL Interface

The NodeXBL interface contains methods for accessing shadow content and for obtaining shadow parents in the altered model. The interface is implemented by DOM nodes (regardless of whether they are currently involved with any XBL processing) and may be obtained using binding-specific casting methods on a Node interface.

All nodes except Notation and Attr nodes must implement NodeXBL, not just element nodes.

IDL Definition
interface NodeXBL {
  readonly attribute Node            xblParentNode;
  readonly attribute NodeList        xblParentNodes;
  readonly attribute NodeList        xblChildNodes;
  readonly attribute Node            xblFirstChild;
  readonly attribute Node            xblLastChild;
  readonly attribute Node            xblPreviousSibling;
  readonly attribute Node            xblNextSibling;
  readonly attribute Element         xblFirstElementChild;
  readonly attribute Element         xblLastElementChild;
  readonly attribute Element         xblPreviousElementSibling;
  readonly attribute Element         xblNextElementSibling;

  readonly attribute Element         xblBoundElement;
  readonly attribute Element         xblShadowTree;
  readonly attribute NodeList        xblDefinitions;

  void addBinding(in DOMString bindingURI);
  void removeBinding(in DOMString bindingURI);
  boolean hasBinding(in DOMString bindingURI);
};
Attributes
xblParentNode of type Node, readonly
The xblParentNode attribute's value is the element's ancestor in the final flattened tree after all shadow trees have been applied.

If the node was repositioned by a content element, then this attribute has the same value as the parentNode attribute of the content element responsible for the repositioning in the deepest shadow scope, except if that is the shadowTree element at the top of the shadow tree, in which case the xblParentNode attribute has the same value as the xblBoundElement attribute of that content element.

If the node is a node in a shadow tree that is not currently in the final flattened tree (for example, the shadowTree element at the top of the shadow tree is never in the final flattened tree), then this attribute returns null.

If the node is in a shadow tree and has the shadowTree element at the top of the shadow tree as its parentNode, then this attribute returns the same value as the xblBoundElement attribute.

If the node is in a shadow tree and has a content element that is not in error as its parentNode, then this attribute returns the same value as the parentNode attribute on the content element, except if that would be the shadowTree element at the top of the shadow tree, in which case it returns the same as value as the xblBoundElement attribute.

If the node is a text node generated by xbl:text in attribute forwarding, then this attribute returns the element that generated the text nodes.

Otherwise it returns the same as the parentNode attribute.

xblParentNodes of type NodeList, readonly
If xblParentNode is null, this attribute returns an empty list. Otherwise, the first value of this attribute is the same as the xblParentNode attribute, and subsequent values are found by the same algorithm as described for xblParentNode, ignoring each binding that repositioned the node in turn, from the deepest shadow scope to the document-level shadow scope, ignoring duplicates.

In brief, this attribute contains all the elements that contain content elements to which the node has been assigned, as well as the explicit parent node, if that node is itself in the final flattened tree.

xblChildNodes of type NodeList, readonly
The xblChildNodes attribute is a NodeList that represents the children of the node after content elements have been applied. This attribute can be used to navigate the content model according to XBL after bindings have moved explicit and shadow children using content elements. The attribute's value is the same as childNodes if the node is not bound.
xblNextSibling of type Node, readonly
This attribute returns the node that follows the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if the current node is the last node in that xblChildNodes list.
xblPreviousSibling of type Node, readonly
This attribute returns the node that precedes the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if the current node is the first node in that xblChildNodes list.
xblFirstChild of type Node, readonly
This attribute returns the first node in the xblChildNodes list, or null if the list is empty.
xblLastChild of type Node, readonly
This attribute returns the last node in the xblChildNodes list, or null if the list is empty.
xblNextElementSibling of type Element, readonly
This attribute returns the first element to follow the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if there are no elements past the current node in that xblChildNodes list.
xblPreviousElementSibling of type Element, readonly
This attribute returns the first element to precede the current node in the xblParentNode's xblChildNodes list, or null if xblParentNode is null or if there are no elements before the current node in that xblChildNodes list.
xblFirstElementChild of type Element, readonly
This attribute returns the first element in the xblChildNodes list, or null if the list contains no elements.
xblLastElementChild of type Element, readonly
This attribute returns the last element in the xblChildNodes list, or null if the list contains no elements.
xblBoundElement of type Element, readonly
The xblBoundElement attribute is used to obtain the bound element with the binding attached that is responsible for the generation of the specified shadow node. This attribute enables an author to determine the shadow scope of any content node. For content at the document-level scope, the attribute's value is null.
xblShadowTree of type Element, readonly
For bound elements with a shadow tree, the xblShadowTree attribute returns the cloned copy of the template element that represents the shadow content template of the element. (That element is renamed to shadowTree during shadow content generation.) For bound elements whose binding have no shadow content template, and for elements that are not bound, it returns null.
xblDefinitions of type NodeList, readonly
For bound elements, a node list containing the definition element for the binding. If the binding chain contains multiple bindings, all the definition elements are listed, with the most derived binding first and the base binding last.
Methods
addBinding
The addBinding method attaches the specified binding (and any bindings that the binding inherits from) to an element. This call is not necessarily synchronous. The binding may not be attached yet when the call completes.
Parameters
bindingURI of type DOMString
A URI that specifies the location of a specific binding to attach.
No Return Value
No Exceptions
removeBinding
The removeBinding method detaches the specified binding (and any bindings that the binding inherits from explicitly using the extends attribute) from the element. This method can only detach bindings that were attached using addBinding. If the binding in question is not attached to this element (or was attached through another attachment mechanism), then the method does nothing.
Parameters
bindingURI of type DOMString
A URI that specifies the location of a specific binding to detach.
No Return Value
No Exceptions
hasBinding
The hasBinding method walks up the bindings applied to the element and compares each binding's URI with the parameter passed. This can be used to check if an element has been bound to a particular binding in in order to ensure that the expected methods and attributes are available. For example widgets may walk up their ancestors looking for an element that has been bound to the form-container binding in order to locate their scope (so that radio buttons may properly be mutually exclusive, or so that a submit button can properly submit a form).
Parameters
bindingURI of type DOMString
A URI that specifies the location of a specific binding for which to look.
Returns
boolean
true if any of the bindings match the parameter, false otherwise.
No Exceptions

Scoping and Access Using the DOM

In effect the shadow content exists in its own insulated pocket within the document, its shadow scope. Explicit parents have no knowledge of their shadow children in terms of DOM Core [DOM3CORE]. The shadow content is not accessible via the childNodes list for the bound element, nor is it accessible using firstChild/nextSibling to iterate over the children of the bound element.

The shadow scope of an element can be determined using the xblBoundElement property on the NodeXBL interface. This returns the bound element in the enclosing shadow scope that is responsible for the shadow node. If invoked on an element at the document-level scope, it returns null.

DOM methods that can be invoked on elements (e.g., getElementsByTagName) will only see nodes that are in the same shadow scope. Methods invoked on the document (e.g., getElementById) only see nodes that are at the document-level scope.

On shadow content nodes, ownerDocument always points to the document from which the nodes were cloned.

Elements in different shadow scopes may have clashing IDs. IDs need only be unique within each shadow scope.

Elements that are the root of a shadow tree (that is, cloned shadowTree elements that can be accessed by an xblShadowTree attribute) cannot be inserted into a document. Any attempt to do so must raise a HIERARCHY_REQUEST_ERR.

DOM Traversals in the Presence of XBL

When the DOM is navigated using the normal DOM Core attributes, starting from the document, the UA must represent the original DOM, with no XBL nodes and shadow content, and with children of bound elements in their original order.

The xblShadowTree attribute on bound elements returns the element that was cloned from the XBL template element. (That element is renamed to shadowTree during shadow content generation.) Manipulating the shadow content tree must directly affect the content under the bound element. content elements may be moved about or even removed altogether, xbl:inherits attributes may be attached and modified, etc, and all these changes must be immediately reflected in the DOM.

Because each bound element gets its own copy of the cloned template, changes to a bound element's shadow content only affect that bound element. Other bindings are unaffected.

If an element is added to the DOM dynamically, its shadow scope is that of its parent element. Adding an element as a child of a bound element causes that element to be assigned to an appropriate content element (if there is one — if there is not, the element does not appear anywhere in the final flattened tree).

Example of XBL DOM Traversals

Imagine the following document fragment:

...
 <A>
  <B>
   <C/>
   <D/>
  </B>
 </A>
...

...is bound to the following XBL:

<xbl:xbl xmlns:xbl="http://www.w3.org/2004/xbl">
 <xbl:definition element="B">
  <xbl:template>
   <P>
    <Q>
     <xbl:content includes="C">
      <R/>
     </xbl:content>
    </Q>
    <xbl:content includes="D">
     <S/>
    </xbl:content>
   </P>
  </xbl:template>
 </xbl:definition>
 <xbl:definition element="Q">
  <xbl:template>
   <X>
    <Y>
     <xbl:content>
      <Z1/>
     </xbl:content>
     <xbl:content>
      <Z2/>
     </xbl:content>
    </Y>
   </X>
  </xbl:template>
 </xbl:definition>
</xbl:xbl>

The resulting DOM would look like the following. To read these diagrams, use the following key:

      |    Solid/dashed lines represent normal DOM traversal attribute
   ---+--- relationships using childNodes, parentNode, nextSibling,
      |    previousSibling, firstChild, lastChild, etc.

      :    Dotted lines represent XBL traversal attribute relationships
   ...:... using xblChildNodes, xblParentNode, xblNextSibling,
      :    xblPreviousSibling, xblFirstChild, xblLastChild, etc.

      )    xblShadowTree

White-space nodes have, for sanity, been left out of these diagrams.

DOM view:

   |
   +-- A
       |
       +-- B
           |
           +-- C
           |
           +-- D

Clone of the shadow tree for B elements (B.xblShadowTree):

   template
    |
    +-- P
        |
        +-- Q
        |   |
        |   +-- content
        |       |
        |       +-- R
        |
        +-- content
            |
            +-- S

Clone of the shadow tree for Q elements (Q.xblShadowTree):

   template
    |
    +-- X
        |
        +-- Y
            |
            +-- content
            |   |
            |   +-- Z1
            |
            +-- content
                |
                +-- Z2

The xbl traversal for the whole thing:

   :
   :.. A
       :
       :.. B
           :
           :.. P
               :
               :.. Q
               :   :
               :   :.. X
               :       :
               :       :.. Y
               :           :
               :           :.. C
               :           :
               :           :.. Z2
               :
               :.. D

The combined view of the DOM and XBL traversals of the whole thing:

   :|___
   :....A    template
        :|___ )   |
        :... B    |
            :|    |
            :|... P    template
             |   :|____ )    |
             |   :|... Q     |
             |   :|   :|     |
             |   :|   :|.... X
             |   :|    |     :\_______
             |   :|    |     :....... Y __
             |   :|    |              :   \
             |   :|    +-- content*   :    |
             |   :|         |         :    |
             |   :|         +-- R     :    +-- content*
             |   :|                   :    |    |
             +---:|--------- C* ......:    |    `-- Z1
             |   :|                   :    |
             |   :|                   :    `-- content
             |   :|                   :         |___
             |   :|                   :............ Z2
             |   :`-- content#
             |   :     |
             |   :     `-- S
             |___:____
                 :... D#

In the following tree, the dashed lines show the additional relationships that are contained in xblParentNodes (with their indices in brackets), the dotted lines represent the relationships that are in both xblParentNode and xblParentNodes (at index 0):

   :
   :.. A
       :        (2)
       :.. B <-----------------.
           :                   |
           :.. P               |
           ^   :               |
           |   :.. Q <---------+ (1)
           |   :   :           |
        (1) \  :   :.. X       |
             \ :       :       |
              \:       :.. Y   |
               :           :   |
               :\          :.. C
               : \         :
               :  \        :.. Z2
               :   |
               :.. D

The XBLContentElement Interface

The XBLContentElement interface is implemented by content elements that are inside shadow template trees. It can be obtained using binding-specific casting methods on the Element interface.

IDL Definition
interface XBLContentElement {
  void xblSetInsertionPoint(in Node child);
};
Attributes
None.
Methods
xblSetInsertionPoint
The xblSetInsertionPoint method checks that the given element is a child of the same bound element as the shadow tree is itself associated with, and, if it is, checks that the element matches this content element, and, if it does, assigns the element to this content element instead of whatever previous content element it was assigned to. The order of elements assigned to a content element is always the same as the relative order of those elements in the explicit DOM.
Parameters
child of type Element
The child of the bound element to assign to this content element.
No Return Value
No Exceptions

The Event Interface

Objects that implement the Event interface must also implement the OriginalEvent interface:

IDL Definition

interface OriginalEvent {
  readonly attribute Event originalEvent;
};

The originalEvent attribute must point to the event that was cloned the last time the event was retargetted, if any, and must be null if the event was never retargetted. (See: event flow and targeting across shadow scopes.)

If an event is retargetted several times, a chain is formed using this attribute, from which script can access each clone of the event, finding the original target at each step.

The XBLShadowTreeElement Interface

The XBLShadowTreeElement interface is implemented by shadowTree elements that are in the XBL namespace.

IDL Definition
interface XBLTemplateElement : Element {
  Element getElementById(in DOMString elementId);
};
Attributes
None.
Methods
getElementById

This method is modelled after the method of the same name defined by [DOM3CORE] on the Document interface.

Returns the Element that has an ID attribute with the given value. If no such element exists, this returns null. If more than one element has an ID attribute with that value, what is returned is undefined.

The method shall only search through the shadowTree element and its descendants.

The DOM implementation is expected to use the attribute Attr.isId to determine if an attribute is of type ID.

Attributes with the name "ID" or "id" are not of type ID unless so defined. For example, elements with the name "id" on elements that are in the XHTML, SVG and XBL namespaces are defined to be of type ID by their respective specifications.

Parameters
elementId of type DOMString
The unique id value for an element.
Returns
Element
The matching element or null if there is none.
No Exceptions

Examples

This entire section is new and needs to be reviewed.

The flowchart example should be close to correct, but it still requires careful review.

The various other RCC examples (GML, XForms, UI) from the last SVG 1.2 public draft have been copied from the SVG 1.2 draft and placed into this document (after modifications to upgrade RCC to sXBL). The examples at the end are just as incomplete as they were when they were part of the writeup on SVG12/RCC.

This section contains some examples of using sXBL with SVG 1.2.

In the following example, bindings are used to make three new elements act like coloured text blocks.

<svg:svg xmlns:svg="http://www.w3.org/2000/svg" version="1.2"
            xmlns:xbl="http://www.w3.org/2004/xbl">
  <svg:defs>
   <xbl:xbl>
    <xbl:definition element="red">
     <xbl:template>
      <svg:text fill="red"><xbl:content/></svg:text>
     </xbl:template>
    </xbl:definition>
    <xbl:definition element="green">
     <xbl:template>
      <svg:text fill="green"><xbl:content/></svg:text>
     </xbl:template>
    </xbl:definition>
    <xbl:definition element="blue">
     <xbl:template>
      <svg:text fill="blue"><xbl:content/></svg:text>
     </xbl:template>
    </xbl:definition>
   </xbl:xbl>
  </svg:defs>

  <red> Red text. </red>
  <green> Green text. </green>
  <blue> Blue text. </blue>

</svg:svg>

In the following example, an SVG file references a set of custom elements for flowcharting from an external file using the import element, and then uses the flowcharting custom elements to lay out and render a flowchart:

<svg width="12cm" height="3cm"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl">
  <desc>Example xbl02 - simple flowchart example using sXBL</desc>

  <!-- XPointer reference to the location for the flowchart extensions -->
  <xbl:import bindings="xbl02-flowcharts.svg#flowcharts"/>

  <!-- Define elements that use the flowchart extensions. As a result of using
       the extensions, a shadow tree of low-level SVG (circle, rect, path elements)
       is attached  to the 'flowchart' element. The user agent renders the shadow tree. -->
  <flowchart xmlns="http://example.org/flowcharts"
             x="0%" y="0%" width="100%" height="100%">
    <terminalNode>Start</terminalNode>
    <processNode>Step 1</processNode>
    <processNode>Step 2</processNode>
    <terminalNode>End</terminalNode>
  </flowchart>
</svg>

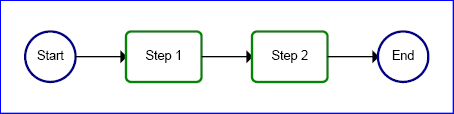

The result would have a blue circle saying 'Start' from which a black arrow exits, pointing at a green rectangle containing the text 'Step 1', which itself has a similar arrow pointing to 'Step 2', which itself again has an arrow, this time pointing to a final blue circle saying 'End'.

View this image as SVG (SVG/sXBL-enabled browsers only)

Here is the file which defines the simple flowcharting extensions used in the example above:

<svg xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmlns:ev="http://www.w3.org/2001/xml-events"
     xmlns:flow="http://example.org/flowcharts">
  <desc>Supplemental file for example xbl02.svg -
        contains definition of simple flowchart extension elements.</desc>

  <xbl:xbl id="flowcharts">

    <!-- Example needs to be upgraded to show handling of mutation events -->

    <defs>
      <symbol id="connectorline">
        <path transform="translate(0 50)" stroke="black" stroke-width="3" fill="black"
              d="M 0,0 L 90,0 L 90,-10 L 100,0 L 90,10 L 90,0"/>
      </symbol>
    </defs>

    <xbl:definition element="flow:terminalNode">
      <xbl:template>
        <g>
          <circle stroke="#008" stroke-width="5" fill="none" cx="50" cy="50" r="50"/>
          <text x="50" y="57" font-size="25" text-anchor="middle"><xbl:content/></text>
        </g>
      </xbl:template>
    </xbl:definition>

    <xbl:definition name="flow:processNode">
      <xbl:template>
        <g>
          <rect stroke="#080" stroke-width="5" fill="none" width="150" height="100" rx="10"/>
          <text x="75" y="57" font-size="25" text-anchor="middle"><xbl:content/></text>
        </g>
      </xbl:template>
    </xbl:definition>

    <xbl:definition name="flow:flowchart">
      <!-- For this example, set up template with no extra whitespace to
           simplify the sample ECMAScript. -->
      <xbl:template><svg><xbl:content/></svg></xbl:template>
      <xbl:handlerGroup>
        <!-- Note: using the 'svg:handler' element that is new with SVG 1.2 -->
        <handler ev:event="xbl:bound" type="text/ecmascript"><![CDATA[
          var svgns = "http://www.w3.org/2000/svg";
          var xlinkns = "http://www.w3.org/1999/xlink";
          var flowchartns = "http://example.org/flowcharts";
          var ELEMENT_NODE = 1;
          var SIDE_INDENT = 50;
          var PROCESSNODE_WIDTH = 150;
          var TERMINALNODE_WIDTH = 100;
          var CONNECTOR_WIDTH = 100;
          var YPOS = 50;
          var flowchartelement = evt.target;
          var templateElement = flowchartelement.xblShadowTree;
          var svgElm = templateElement.firstChild;
          svgElm.setAttributeNS(null, "x", flowchartelement.getAttributeNS(null, "x"));
          svgElm.setAttributeNS(null, "y", flowchartelement.getAttributeNS(null, "y"));
          svgElm.setAttributeNS(null, "width", flowchartelement.getAttributeNS(null, "width"));
          svgElm.setAttributeNS(null, "height", flowchartelement.getAttributeNS(null, "height"));

          // Determine total width needed and set viewBox attribute appropriately.
          var totalWidth = 0;
          var nodeCount = 0;
          for( var node = flowchartelement.firstChild ; node != null ; node = node.nextSibling )
          {
            // only process elements in flowchart ns
            if( node.nodeType == ELEMENT_NODE && node.namespaceURI == flowchartns) {
              nodeCount++;
              if (node.localName == "processNode")
                totalWidth += PROCESSNODE_WIDTH;
              else if (node.localName == "terminalNode")
                totalWidth += TERMINALNODE_WIDTH;
            }
          }
          totalWidth += (nodeCount-1)*CONNECTOR_WIDTH + 2*SIDE_INDENT;
          svgElm.setAttributeNS(null, "viewBox", "0 0 "+totalWidth+" 200");
          var xtrans = 50;

          // Position all of the nodes and draw the connectors.
          var xpos = SIDE_INDENT;
          var nodeNum = 0;
          for( var node = flowchartelement.firstChild ; node != null ; node = node.nextSibling )
          {
            // only process elements in flowchart ns
            if( node.nodeType == ELEMENT_NODE && node.namespaceURI == flowchartns) {
              node.xblShadowTree.setAttributeNS(null, "transform", "translate("+xpos+" "+YPOS+")");
              var nodeWidth;
              if (node.localName == "processNode") {
                nodeWidth = PROCESSNODE_WIDTH;
              } else if (node.localName == "terminalNode") {
                nodeWidth = TERMINALNODE_WIDTH;
              }
              xpos += nodeWidth;
              // Add connector line to end of flowchart node's shadowTree.
              if (nodeNum < (nodeCount-1)) {
                var useElement = document.createElementNS(svgns, "use");
                useElement.setAttributeNS(xlinkns, "xlink:href", "#connectorline");
                useElement.setAttributeNS(null, "transform", "translate("+nodeWidth+" 0)");
                node.xblShadowTree.appendChild(useElement);
                xpos += CONNECTOR_WIDTH;
              }
              nodeNum++;
            }
          }
        ]]></handler>
      </xbl:handlerGroup>
    </xbl:definition>

  </xbl:xbl>

</svg>

The next example takes sample code from section 4.6 from the Geography Markup Language (GML) specification, version 2.1.2. The 'extensionDefs' element would effect a client-side transformation from original XML/GML into final-form SVG rendering.

<svg width="12cm" height="3cm"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xbl="http://www.w3.org/2004/xbl">
  <desc>Example xbl-gml-01 - GML and XBL</desc>

  <!-- XPointer reference to the location for the GML extensions -->
  <xbl:import bindings="xbl-gml-01-exts.svg#gml"/>

  <CityModel xmlns="http://www.opengis.net/examples"
             xmlns:gml="http://www.opengis.net/gml"
             xmlns:xlink="http://www.w3.org/1999/xlink"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://www.opengis.net/examples city.xsd">

    <gml:name>Cambridge</gml:name>
    <gml:boundedBy>
      <gml:Box srsName="http://www.opengis.net/gml/srs/epsg.xml#4326">
        <gml:coord><gml:X>0.0</gml:X><gml:Y>0.0</gml:Y></gml:coord>
        <gml:coord><gml:X>100.0</gml:X><gml:Y>100.0</gml:Y></gml:coord>
      </gml:Box>
    </gml:boundedBy>

    <cityMember>
      <River>
        <gml:description>The river that runs through Cambridge.</gml:description>
        <gml:name>Cam</gml:name>
        <gml:centerLineOf>
          <gml:LineString srsName="http://www.opengis.net/gml/srs/epsg.xml#4326">
            <gml:coord><gml:X>0</gml:X><gml:Y>50</gml:Y></gml:coord>
            <gml:coord><gml:X>70</gml:X><gml:Y>60</gml:Y></gml:coord>
            <gml:coord><gml:X>100</gml:X><gml:Y>50</gml:Y></gml:coord>
          </gml:LineString>
        </gml:centerLineOf>
      </River>
    </cityMember>

    <dateCreated>2000-11</dateCreated>
  </CityModel>
</svg>

The next example takes sample code from [Appendix G of the XForms specification | http://www.w3.org/TR/xforms/sliceG.html ] . The extensionDefs element would effect a client-side transformation from original XForms elements into final-form SVG rendering. In this example, the assumption is that the extension would implement all or at least a large part of the XForms specification via DOM/scripting.

<svg width="12cm" height="3cm"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:xforms="http://www.w3.org/2002/xforms/cr"
     xmlns:xsd="http://www.w3.org/2001/XMLSchema"
     xmlns:ev="http://www.w3.org/2001/xml-events"
     xmlns:xbl="http://www.w3.org/2004/xbl"
     xmlns:my="http://commerce.example.com/payment">
  <desc>Example xbl-xforms-01 - using sXBL within a combined XForms+SVG user agent</desc>
  <title xml:lang="fr">XForms en SVG</title>

  <!-- XPointer reference to the location for the XForms extensions to SVG.
       The extensions convert the XForms UI elements into low-level SVG
       interactive graphics and also provide  high-level features,
       such as client-side validation and the XForms event model. -->
  <xbl:import bindings="xbl-xforms-01-exts.svg#xforms"/>

  <rx:renderXForms xmlns:rx="http://example.org/rcc-xforms"
         xmlns="http://www.w3.org/2002/xforms/cr">

    <model schema="payschema.xsd">
      <instance>
        <my:payment as="credit">
          <my:cc />
          <my:exp />
        </my:payment>
      </instance>
      <submission action="http://www.example.com/buy.rb" method="post" id="s00" />
      <bind nodeset="my:cc" relevant="../@as='credit'" required="true()" />
      <bind nodeset="my:exp" relevant="../@as='credit'" required="true()" />
    </model>

    <group xmlns="http://www.w3.org/2002/xforms/cr">
      <trigger>
        <label>Français</label>
        <toggle case="fr" ev:event="xforms-activate" />
      </trigger>
      <trigger>
        <label>English</label>
        <toggle case="en" ev:event="xforms-activate" />
      </trigger>
    </group>

    <input ref="my:cc">
      <label xml:lang="fr">Numéro de carte bancaire</label>
      <alert xml:lang="fr">Saisissez un numéro de carte
       bancaire valide en séparant chaque groupe de chiffres
       d'un espace ou d'un trait d'union.</alert>
    </input>

    <input ref="my:exp">
      <label xml:lang="fr">Date d'échéance</label>
    </input>

    <submit submission="s00">
      <label xml:lang="fr">Achetez</label>
    </submit>
</svg>

The next example supplements the XForms example above with the following simple example which shows a set of extension elements ui:menubar, ui:menu, ui:menuitem) which present a menubar and a scrolling area for graphics.

<svg width="525" height="575"
     xmlns="http://www.w3.org/2000/svg" version="1.2"
     xmlns:ui="http://example.org/xbl-ui">
  <desc>Example xbl-ui-01 - using XBL for UI elements</desc>
  <title>UI in SVG</title>

  <!-- XPointer reference to the location for the UI extensions to SVG.
       The extensions convert the UI elements into low-level SVG. -->
  <xbl:import bindings="xbl-ui-01-exts.svg#ui"/>

  <ui:menubar x="25" y="25" width="500" height="20" font-size="14">
    <ui:menu title=File>
      <ui:menuitem title=New op="newdoc(evt)">
      <ui:menuitem title=Open op="opendoc(evt)">
    </ui:menu>
    <ui:menu title=Edit>
      <ui:menuitem title=Copy op="copy(evt)">
      <ui:menuitem title=Past op="paste(evt)">
    </ui:menu>
  </ui:menubar>

  <ui:scrollArea x="25" y="50" width="500" height="400">
    <image xlink:href="..." ... />
    <path d="..." ... />
    <text transform="..." font-size="...">...</text>
  </ui:scrollArea>
</svg>

The last example shows XBL being used for custom container elements that perform layout, in this case a magazine layout.

<svg>
  ...

  <!-- XPointer reference to the location for the widgets extensions to SVG.
       The extensions convert the widget elements into low-level SVG. -->
  <xbl:import bindings="xbl-dynlayout-01-exts.svg#dynlayout" />

  <foo:DynamicPageLayout>
    <foo:articles>
      <foo:article>
        <foo:title>Major war erupts</foo:title>
        <foo:para>War broke out around the world today...</foo:para>
      </foo:article>
      <foo:article>
        <foo:title>Two headed-chicken born</foo:title>
        <foo:para>The sleepy town of Frostbite Falls is excited about...</foo:para>
      </foo:article>
    </foo:articles>
  </foo:DynamicPageLayout>
  ...
</svg>

Grammar

This grammar is not necessarily completely up to date.

The following defines the grammar for sXBL using RelaxNG.

<!-- ==============================================================
      sXBL 1.0 ~ simplied schema
      Robin Berjon <robin.berjon@expway.fr>
      31/05/2004
     ============================================================== -->
<grammar ns='http://www.w3.org/2004/xbl'
         xml:lang='en'
         xmlns='http://relaxng.org/ns/structure/1.0'
         xmlns:a='http://relaxng.org/ns/compatibility/annotations/1.0'
         datatypeLibrary='http://www.w3.org/2001/XMLSchema-datatypes'
         >
  <!--
    NOTES:
        - this is a simplified schema in that it does not define classes and
          other such constructs that would make it easier to integrate into the
          rest of the SVG schema
        - I seem to remember there was a bug in my RNG namespace wildcards. If
          so, it has been copied here (I have no reference handy).
        - I have followed the descriptions in the spec, so that if it says "zero
          or more foo" and then "zero or more bar", then the foos must occur
          before the bars. This can be changed.
        - there are some spec issues embedded in the comments
  -->

  <!-- ... common definitions .............................................. -->
  <define name='id.attrib'>
    <optional>
      <attribute name='id'>
        <data type='ID'/>
      </attribute>
    </optional>
  </define>

  <!-- ... elements ........................................................ -->
  <element name='xbl'>
    <zeroOrMore><ref name='definition'/></zeroOrMore>
    <zeroOrMore><ref name='import'/></zeroOrMore>
    <ref name='id.attrib'/>
  </element>

  <element name='definition'>
    <choice>
      <attribute name='ref'><data type='anyURI'/></attribute>
      <group>
        <optional><ref name='template'/></optional>
        <optional><ref name='handlerGroup'/></optional>
        <attribute name='element'><data type='QName'/></attribute>
      </group>
    </choice>
    <ref name='id.attrib'/>
  </element>

  <element name='template'>
    <ref name='id.attrib'/>
  </element>

  <element name='content'>
    <optional><attribute name='includes'><text/></attribute></optional>
    <ref name='id.attrib'/>
  </element>

  <element name='handlerGroup'>
    <!-- the content model for this element mentions ev:listener and svg:handler
         but is rather unclear as to what should be included here -->
    <ref name='id.attrib'/>
  </element>

  <element name='import'>
    <!-- this should really be either of xlink:href or src -->
    <optional><attribute name='bindings'><data type='anyURI'/></attribute></optional>
    <ref name='id.attrib'/>
  </element>
</grammar>

Comparison of sXBL to RCC

This section will be removed before the Last Call draft of the sXBL specification.

With this first public draft of sXBL, the SVG 1.2 feature formerly known as RCC (Rendering Custom Content: http://www.w3.org/TR/2004/WD-SVG12-20040510/#rcc) has been factored out into its own reusable namespace and reconciled to be forward-looking for use by other XBL grammars.

The following table provides a quick summary comparison of how sXBL compares with the RCC (Rendering Custom Content) feature found in earlier drafts of SVG 1.2:

RCC sXBL

<svg:extensionDefs xlink:href="xpointer"/>

In RCC, the svg:extensionDefs element could use an xpointer to reference the binding definitions. If so, the xpointer had to point to a different svg:extensionDefs element, typically in a separate file.

<xbl:import bindings="xpointer"/>

To accomplish the same functionality in sXBL, use the xbl:import element. In sXBL, there is more flexibility. The xpointer can point to either an xbl:xbl element, typically in a separate file, or to an SVG file which can contain any number of xbl:xbl elements, all of which get processed.

<svg:extensionDefs namespace="nsURI">
  ...definitions of custom elements...
</svg:extensionDefs>

In RCC, the 'namespace' attribute applied to all svg:elementDef children of the svg:extensionDefs element.

<xbl:xbl>
  ...definitions of custom elements...
</xbl:xbl>

In sXBL, the 'namespace' attribute is no longer needed. The 'element' attribute on the xbl:definition element takes a QName. The namespace prefix on the QName identifies the namespace for the custom element.

<svg:elementDef name="localname">
  ...binding definition...
</svg:elementDef>

In RCC, the 'name' attribute provided the localname of the custom element. The namespace for the custom element came from the 'namespace' attribute on the svg:extensionDefs element.

<xbl:definition element="QName">
  ...binding definition...
</xbl:definition>

In sXBL, the 'element' attribute identifies the custom element by a QName. The namespace prefix on the QName identifies the namespace for the custom element. The localname part of the QName completes the identification of the custom element.

N/A in RCC

<xbl:definition element="QName" ref="xpointer"/>

In sXBL, it is possible to have the bound document associate custom elements with per-element bindings using the xbl:definition element with a 'ref' attribute. This allows the bound document (i.e., the document which contains the custom elements) to dictate how to associate its custom elements with the binding definitions (i.e., xbl:definition elements) found in another document.

<svg:defs>, <svg:script>, <svg:handler>

In RCC, svg:defs, svg:script, and svg:handler could appear in various locations within RCC definitions.

<svg:defs>, <svg:script>, <svg:handler>

In general, sXBL has the same rules. One addition with sXBL is the xbl:handlerGroup element, described below.

<svg:prototype various attributes>
  ...initial shadow tree...
</svg:prototype>

In RCC, the svg:prototype contained an initial template for the elements which were cloned into the shadow tree for the custom element. The svg:prototype element was the root node of the set of elements which were rendered and received events. Because svg:prototype was part of the rendering and event pipelines, you were able to attach styling properties, transforms, and event attributes (the various attributes listed above) to the svg:prototype element.

<xbl:template>
  ...initial shadow tree...
</xbl:template>

sXBL is nearly the same. Just like svg:prototype, xbl:template contained an initial template for the elements which are cloned into the shadow tree for the custom element. xbl:template is the root node of the xblShadowTree, in much the same way that svg:prototype element was the root node of the shadow tree. However, one distinction is that for rendering the xbl:template is flattened out of the rendering pipeline. Therefore, it is not possible to attach styling properties, transforms, and event attributes to an xbl:template; instead, you need to include a container element such as an <svg:g> element in the shadow tree if you need to attach styling properties, transforms, and event attributes.

<svg:transformer>, <svg:param>

The latest public draft of RCC described these two elements (http://www.w3.org/TR/2004/WD-SVG12-20040510/#transformer-element), but warned the community that there features are "...likely to be removed from the next draft of SVG 1.2, due to the high burden on implementation and the difficulty in optimization."

Not available

In the transition from RCC to sXBL, <svg:transformer>, <svg:param> have been removed.

<svg:refContent [select="xpath"] various attributes/>

In RCC, the svg:refContent allowed the shadow content to include-by-reference child elements of the custom element. The svg:refContent element was a container node for the referenced elements and was part of the rendering and event pipelines. Because svg:refContent was part of the rendering and event pipelines, you were able to attach styling properties, transforms, and event attributes (the various attributes listed above) to the svg:refContent element.

<xbl:content [includes="???"]>
  ...backup content...
</xbl:xbl:content>

The most important aspects of sXBL are the same. Just like svg:prototype, xbl:content does an include-by-reference to the child elements of the custom element. The exact name of the attribute (e.g., 'select' versus 'includes' is still under debate and the syntax of this attribute (xpath? tagnames? CSS selector syntax?) is also still under debate. The rules for what happens if there is a mismatch between the bound element's content and the set of xbl:content elements is also under debate. Finally, sXBL might include a backup content feature that was not available in RCC.

One distinction with sXBL is that the xbl:content is flattened out of the rendering pipeline. Therefore, it is not possible to attach styling properties, transforms, and event attributes to an xbl:content; instead, you need to include a parent container element such as an <svg:g> element in the shadow tree if you need to attach styling properties, transforms, and event attributes.

<svg:traitDef>

In RCC, told the user agent about custom attributes to enable animation of custom attributes and attachment of mutation event listeners.

Moved out of RCC into SVG 1.2.

These features will be defined within the SVG 1.2 specification and will not be part of the sXBL specification.

SVGBindBegin, SVGBindEnd

In RCC, the SVGBindBegin event was raised just after cloning the svg:prototype but before recursively applying RCC bindings to the contents of the shadow tree. The SVGBindEnd event is raised after recursively applying RCC bindings to the elements which were cloned onto the shadow tree.

xbl:prebind, xbl:bound, xbl:unbinding

In sXBL, the binding events are in the XBL namespace (http://www.w3.org/2004/xbl). xbl:prebind matches SVGBindBegin, and xbl:bound matches SVGBindEnd. sXBL adds an xbl:unbinding event so that script can be told when a binding is about to be unattached from a custom element.

RCC detailed processing model

The SVG 1.2 drafts were incomplete in various ways in describing the complete details of the RCC processing model. Some aspects were well-specified. Other aspects were designed but had not been committed to the public specifications yet. Some aspects of the processing model were not yet resolved.

sXBL detailed processing model

The sXBL specification is still under development. In general, the detailed processing model for sXBL is highly consistent with the detailed processing model for the parts of RCC that were described in early SVG 1.2 drafts. Some aspects of the sXBL processing model are still under discussion.

Comparison of sXBL to XBL1

Nigel McFarlane has kindly offered to write an appendix describing the differences between Mozilla's XBL and the sXBL language defined by this specification.

Acknowledgments

The membership of the XBL task force was drawn from the SVG and CSS working groups, and consisted of L. David Baron, Robin Berjon, Alex Danilo, Jon Ferraiolo, Darryl Fuller, Ian Hickson, David Hyatt, Dean Jackson, Christophe Jolif, Chris Lilley, Antoine Quint, Peter Sorotokin.

References

[CSS3UI]
"CSS3 Basic User Interface Module", T. Çelik, editor, 11 May 2004. Available at http://www.w3.org/TR/css3-ui.
[DOM3CORE]
"Document Object Model (DOM) Level 3 Core Specification", A. Le Hors, P. Le Hégaret et. al., editors, 07 April 2004. Available at http://www.w3.org/TR/DOM-Level-3-Core.
[DOM3EVENTS]
"Document Object Model (DOM) Level 3 Events Specification", P. Le Hégaret, T. Pixley, editors, 07 November 2003. Available at http://www.w3.org/TR/DOM-Level-3-Events.
[RFC2119]
"Key words for use in RFCs to Indicate Requirement Levels", S. Bradner, March 1997. Available at http://www.ietf.org/rfc/rfc2119.txt.
[SVG11]
"Scalable Vector Graphics (SVG) 1.1 Specification", J. Ferraiolo, 藤沢 淳, D. Jackson, editors, 14 January 2003. Available at http://www.w3.org/TR/SVG11/.
[XML10]
"Extensible Markup Language (XML) 1.0 (Third Edition)", T. Bray, J. Paoli, C.M. Sperberg-McQueen, E. Maler, F. Yergeau editors, 04 February 2004. Available at http://www.w3.org/TR/REC-xml.
[XMLBASE]
"XML Base", J. Marsh , editor, 20 December 2000. Available at http://www.w3.org/TR/xmlbase/.
[XMLNS]
"Namespaces in XML", T. Bray, D. Hollander, A. Layman, editors, 14 January 1999. Available at http://www.w3.org/TR/REC-xml-names/.
